ADG3308BRUZ-REEL - Analog Devices

Description: Translation - Voltage Levels 1.2 V - 5.5 V, 8-channel BI-DIR TRANS IC

Download ADG3308BRUZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

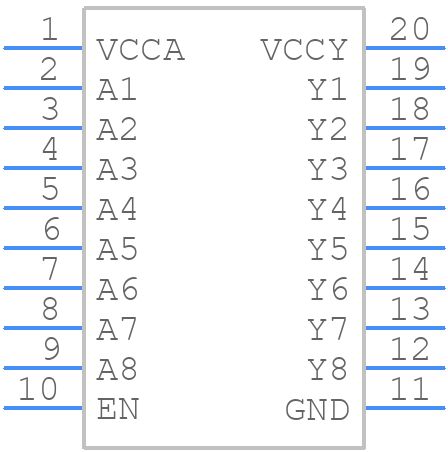

ADG3308BRUZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG3308BRUZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-20 (TSSOP)
click to zoom
3D Models
ADG3308BRUZ-REEL - Analog Devices - 3D model - Small Outline Packages - RU-20 (TSSOP)
click to zoom

ADG3308BRUZ-REEL Details

  • Manufacturer Part Number:

    ADG3308BRUZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RU-20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Delay-Max:

    10 ns

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.15 V

  • Supply Voltage-Nom:

    1.2 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    1.65 V

  • Supply Voltage1-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

ADG3308BRUZ-REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG3308BRUZ-REEL involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The ADG3308BRUZ-REEL requires a single 3.3V or 5V power supply. It's recommended to use a low-noise, low-dropout regulator to power the device. The power sequencing requirement is to power up the VDD pin before the VLOGIC pin. The device is not sensitive to power-up sequencing, but it's recommended to power up the analog supply (VDD) before the digital supply (VLOGIC).
  • The recommended clock frequency for the ADG3308BRUZ-REEL is between 10 kHz to 100 kHz. The clock signal should have a low jitter and a stable frequency to ensure accurate conversion. A clock signal with a duty cycle of 40% to 60% is recommended.
  • To optimize the performance of the ADG3308BRUZ-REEL in noisy environments, it's recommended to use a low-pass filter on the analog input signals, use a shielded cable for the analog signals, and keep the device away from high-frequency noise sources. Additionally, using a ground plane and a dedicated power plane can help to reduce noise coupling.
  • The ADG3308BRUZ-REEL does not require calibration. It's a plug-and-play device that can be used without any calibration. However, it's recommended to perform a system-level calibration to ensure the overall system accuracy and performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADG3308BRUZ-REEL Overview

Use the download button to access the ADG3308BRUZ-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADG33, or try a keyword search, such as Level Translators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
