ADG408BN - Analog Devices

ADG408BN Details

• Manufacturer Part Number:

  ADG408BN

• Source Url Status Check Date:

  2013-05-01 14:56:37.177

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

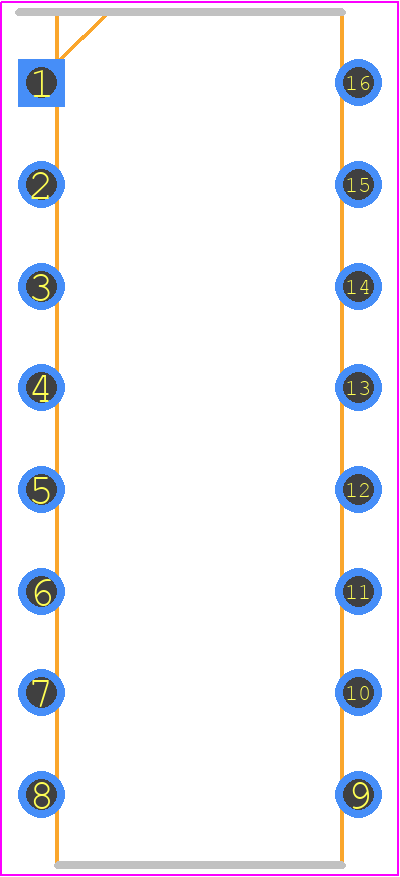

• Part Package Code:

  DIP

• Package Description:

  PLASTIC, MS-001AB, DIP-16

• Pin Count:

  16

• Manufacturer Package Code:

  N-16

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Additional Feature:

  CAN ALSO OPERATE WITH 12V SUPPLY

• Analog IC - Other Type:

  SINGLE-ENDED MULTIPLEXER

• JESD-30 Code:

  R-PDIP-T16

• JESD-609 Code:

  e0

• Length:

  20.07 mm

• Neg Supply Voltage-Nom (Vsup):

  -15 V

• Normal Position:

  NO

• Number of Channels:

  8

• Number of Functions:

  1

• Number of Terminals:

  16

• Off-state Isolation-Nom:

  75 dB

• On-state Resistance Match-Nom:

  15 Ω

• On-state Resistance-Max (Ron):

  100 Ω

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output:

  COMMON OUTPUT

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP16,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.33 mm

• Signal Current-Max:

  0.02 A

• Supply Current-Max (Isup):

  0.5 mA

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  NO

• Switch-off Time-Max:

  150 ns

• Switch-on Time-Max:

  150 ns

• Switching:

  BREAK-BEFORE-MAKE

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
