ADG442BNZ - Analog Devices

Description: ADG442BNZ, Analogue SPST Switch Quad SPST, 12 V, 16-Pin, PDIP, 4

Download ADG442BNZ Model

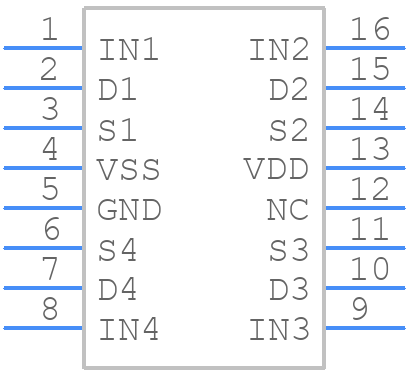

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADG442BNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-16(inch)
click to zoom
3D Models
ADG442BNZ - Analog Devices  - 3D model - Dual-In-Line Packages - N-16(inch)
click to zoom

ADG442BNZ Details

  • Manufacturer Part Number:

    ADG442BNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, MO-095AC, DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    N-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    CAN ALSO OPERATE WITH 12V SUPPLY

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Length:

    19.43 mm

  • Neg Supply Voltage-Max (Vsup):

    -16.5 V

  • Neg Supply Voltage-Min (Vsup):

    -13.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    60 dB

  • On-state Resistance Match-Nom:

    1 Ω

  • On-state Resistance-Max (Ron):

    70 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.57 mm

  • Signal Current-Max:

    0.03 A

  • Supply Current-Max (Isup):

    0.08 mA

  • Supply Voltage-Max (Vsup):

    16.5 V

  • Supply Voltage-Min (Vsup):

    13.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Switch-off Time-Max:

    60 ns

  • Switch-on Time-Max:

    110 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

ADG442BNZ Frequently Asked Questions (FAQs)

  • The ADG442BNZ is a low-frequency switch, and its operating frequency is limited by the RC time constant of the switch and the load. Typically, it can operate up to 100 kHz, but this can vary depending on the specific application and load conditions.
  • To ensure reliability in high-temperature applications, it's essential to follow proper PCB design and layout guidelines, provide adequate heat sinking, and operate the device within its recommended temperature range. Additionally, consider using a thermally enhanced package, such as the ADG442BNZ-REEL7, which has an exposed pad for improved thermal performance.
  • To prevent latch-up and ensure proper operation, it's recommended to power up the VDD pin before applying the logic inputs. The power-up sequence should be: VDD, then IN, and finally EN. This ensures that the internal circuitry is properly initialized and configured before the switch is enabled.
  • Charge injection can be minimized by using a balanced signal path, ensuring that the source and drain of the switch are at the same potential, and using a low-impedance signal source. Additionally, consider using a switch with low charge injection, such as the ADG442BNZ, which has a typical charge injection of 10 pC.
  • To minimize signal degradation and ensure proper operation, it's essential to follow proper PCB layout and routing guidelines. Keep the signal paths short and direct, avoid crossing signal lines, and use a solid ground plane to reduce noise and interference.
