ADG444BNZ - Analog Devices

Description: ADG444BNZ, Analogue SPST Switch Quad SPST, 12 V, 16-Pin, PDIP, 4

Download ADG444BNZ Model

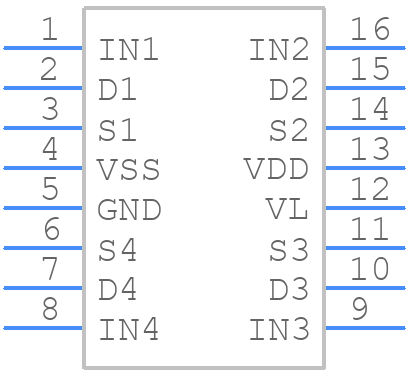

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADG444BNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-16(inch)
click to zoom
3D Models
ADG444BNZ - Analog Devices  - 3D model - Dual-In-Line Packages - N-16(inch)
click to zoom

ADG444BNZ Details

  • Manufacturer Part Number:

    ADG444BNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, MO-095AC, DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    N-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    CAN ALSO OPERATE WITH 12V SUPPLY

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Length:

    19.43 mm

  • Neg Supply Voltage-Max (Vsup):

    -16.5 V

  • Neg Supply Voltage-Min (Vsup):

    -13.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NC

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    60 dB

  • On-state Resistance Match-Nom:

    1 Ω

  • On-state Resistance-Max (Ron):

    70 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.57 mm

  • Signal Current-Max:

    0.03 A

  • Supply Current-Max (Isup):

    0.0025 mA

  • Supply Voltage-Max (Vsup):

    16.5 V

  • Supply Voltage-Min (Vsup):

    13.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Switch-off Time-Max:

    60 ns

  • Switch-on Time-Max:

    110 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

ADG444BNZ Frequently Asked Questions (FAQs)

  • The ADG444BNZ is a low-frequency switch, and its operating frequency is limited by the RC time constant of the switch and the load. The maximum operating frequency is typically in the range of 1-10 kHz, depending on the specific application and load conditions.
  • To ensure reliability in high-temperature applications, it is essential to follow proper PCB design and layout guidelines, provide adequate heat sinking, and ensure that the device is operated within its recommended operating temperature range (-40°C to +125°C). Additionally, consider using a thermally enhanced package, such as the ADG444BNZ-EP, which is designed for high-reliability applications.
  • The recommended power-up sequence for the ADG444BNZ is to apply the power supply voltage (VDD) before applying the control voltage (VCTL). This ensures that the internal circuitry is properly initialized and that the switch is in a known state.
  • To minimize the on-resistance of the ADG444BNZ, ensure that the control voltage (VCTL) is at the maximum recommended level (typically 5 V), and that the power supply voltage (VDD) is within the recommended range (typically 1.8 V to 5.5 V). Additionally, minimize the PCB trace resistance and inductance to reduce the overall on-resistance.
  • Yes, the ADG444BNZ can be used as a multiplexer. The device has four independent switches, which can be connected to multiple signal sources and sinks. By controlling the switches, you can multiplex multiple signals onto a single output.
