ADG506ATQ - Analog Devices

ADG506ATQ Details

• Manufacturer Part Number:

  ADG506ATQ

• Source Url Status Check Date:

  2013-05-01 14:56:37.583

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Part Life Cycle Code:

  Not Recommended

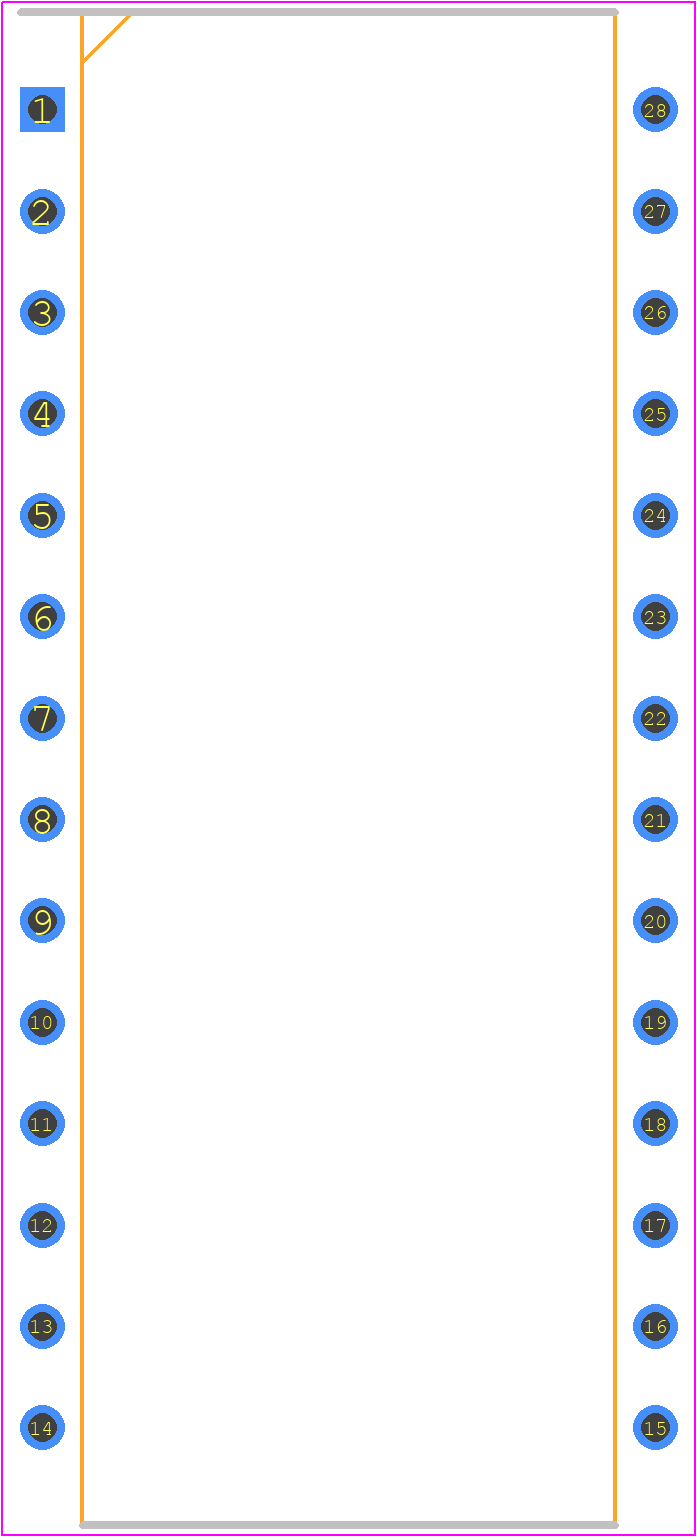

• Part Package Code:

  DIP

• Package Description:

  CERAMIC, DIP-28

• Pin Count:

  28

• Manufacturer Package Code:

  Q-28-2

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  3

• Analog IC - Other Type:

  SINGLE-ENDED MULTIPLEXER

• JESD-30 Code:

  R-GDIP-T28

• JESD-609 Code:

  e0

• Length:

  37.84 mm

• Neg Supply Voltage-Max (Vsup):

  -16.5 V

• Neg Supply Voltage-Min (Vsup):

  -10.8 V

• Neg Supply Voltage-Nom (Vsup):

  -15 V

• Normal Position:

  NO

• Number of Channels:

  16

• Number of Functions:

  1

• Number of Terminals:

  28

• Off-state Isolation-Nom:

  68 dB

• On-state Resistance Match-Nom:

  22.5 Ω

• On-state Resistance-Max (Ron):

  450 Ω

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Output:

  COMMON OUTPUT

• Package Body Material:

  CERAMIC, GLASS-SEALED

• Package Code:

  DIP

• Package Equivalence Code:

  DIP28,.6

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.59 mm

• Signal Current-Max:

  0.02 A

• Supply Current-Max (Isup):

  1.5 mA

• Supply Voltage-Max (Vsup):

  16.5 V

• Supply Voltage-Min (Vsup):

  10.8 V

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  NO

• Switch-off Time-Max:

  300 ns

• Switch-on Time-Max:

  300 ns

• Switching:

  BREAK-BEFORE-MAKE

• Technology:

  CMOS

• Temperature Grade:

  MILITARY

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  15.24 mm
