ADG507AKRZ-REEL7 - Analog Devices

Description: Analog Multiplexer

Download ADG507AKRZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

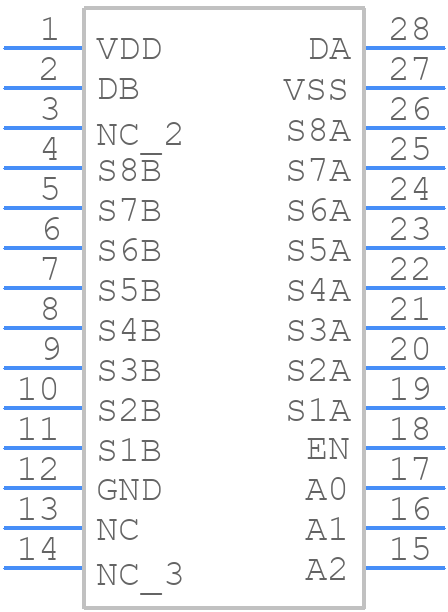

Symbol
ADG507AKRZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG507AKRZ-REEL7 - Analog Devices PCB footprint - Other - Other - SOIC127P1032X265-28N
click to zoom
3D Models
ADG507AKRZ-REEL7 - Analog Devices - 3D model - Other - SOIC127P1032X265-28N
click to zoom

ADG507AKRZ-REEL7 Details

  • Manufacturer Part Number:

    ADG507AKRZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RW-28

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Analog IC - Other Type:

    DIFFERENTIAL MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    17.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -16.5 V

  • Neg Supply Voltage-Min (Vsup):

    -10.8 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NO

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Off-state Isolation-Nom:

    68 dB

  • On-state Resistance Match-Nom:

    14 Ω

  • On-state Resistance-Max (Ron):

    450 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Signal Current-Max:

    0.02 A

  • Supply Current-Max (Isup):

    1.5 mA

  • Supply Voltage-Max (Vsup):

    16.5 V

  • Supply Voltage-Min (Vsup):

    10.8 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    300 ns

  • Switch-on Time-Max:

    300 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

ADG507AKRZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG507AKRZ-REEL7 involves keeping the signal paths short, using a solid ground plane, and minimizing the distance between the device and the load. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material, and keeping the device within its recommended operating temperature range.
  • The ADG507AKRZ-REEL7 has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding oneself before handling the device, and using an ESD wrist strap or mat.
  • While the ADG507AKRZ-REEL7 is primarily designed for low-frequency applications, it can be used in high-frequency applications with proper PCB layout and component selection. However, it's essential to evaluate the device's performance at the desired frequency and ensure it meets the application's requirements.
  • To troubleshoot issues with the ADG507AKRZ-REEL7, start by verifying the power supply voltage, checking for proper PCB layout and component selection, and ensuring that the device is operated within its recommended specifications. If issues persist, consult the datasheet and application notes or contact Analog Devices' technical support.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

ADG507AKRZ-REEL7 Overview

Use the download button to access the ADG507AKRZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADG50, or try a keyword search, such as Multiplexers or Switches
