ADG5209FBRUZ-RL7 - Analog Devices

Description: Fault Protection, −0.4 pC QINJ, 8:1/Dual 4:1 Multiplexers

Download ADG5209FBRUZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

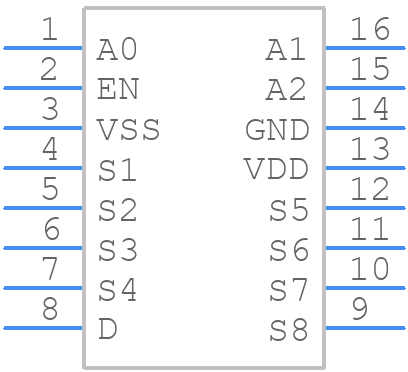

Symbol
ADG5209FBRUZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG5209FBRUZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead Thin Shrink Small Outline Package [TSSOP] (RU-16)*
click to zoom
3D Models
ADG5209FBRUZ-RL7 - Analog Devices - 3D model - Small Outline Packages - 16-Lead Thin Shrink Small Outline Package [TSSOP] (RU-16)*
click to zoom

ADG5209FBRUZ-RL7 Details

  • Manufacturer Part Number:

    ADG5209FBRUZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    DIFFERENTIAL MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -16.5 V

  • Neg Supply Voltage-Min (Vsup):

    -13.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NO

  • Number of Channels:

    4

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    76 dB

  • On-state Resistance Match-Nom:

    2.5 Ω

  • On-state Resistance-Max (Ron):

    270 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Signal Current-Max:

    0.02 A

  • Supply Current-Max (Isup):

    2.15 mA

  • Supply Voltage-Max (Vsup):

    16.5 V

  • Supply Voltage-Min (Vsup):

    13.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    145 ns

  • Switch-on Time-Max:

    260 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADG5209FBRUZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG5209FBRUZ-RL7 involves keeping the signal traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a symmetrical layout for the differential pairs and to avoid vias under the device.
  • The ADG5209FBRUZ-RL7 requires a single 3.3V or 5V power supply. It's recommended to power the device with a low-noise, low-dropout regulator. The power sequencing requirements are not critical, but it's recommended to power the device after the input signals are stable.
  • The ADG5209FBRUZ-RL7 can support data rates up to 1.5 Gbps, but the actual data rate achievable depends on the system design, PCB layout, and signal integrity.
  • To troubleshoot issues with the ADG5209FBRUZ-RL7, use a signal generator and oscilloscope to measure the input and output signals. Check for signal attenuation, distortion, and jitter. Verify that the power supply is stable and within the recommended range. Also, check the PCB layout and signal routing for any issues.
  • The ADG5209FBRUZ-RL7 is specified to operate from -40°C to 125°C. However, the device's performance may degrade at higher temperatures, and the maximum junction temperature should not exceed 150°C. It's recommended to derate the device's performance and power consumption at higher temperatures.
