ADG5401BCPZ-RL7 - Analog Devices

Description: Analog Switch ICs Latchup Proof,+/-20V,+/-15V,+12V,+36V 2xSPST

Download ADG5401BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

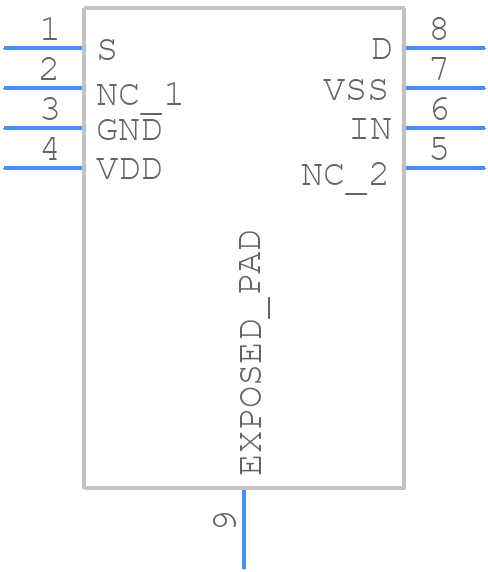

ADG5401BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG5401BCPZ-RL7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - ADG5401BCPZ-RL7
click to zoom
3D Models
ADG5401BCPZ-RL7 - Analog Devices - 3D model - Small Outline No-lead - ADG5401BCPZ-RL7
click to zoom

ADG5401BCPZ-RL7 Details

  • Manufacturer Part Number:

    ADG5401BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    2 X 3 MM, ROHS COMPLIANT, LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-4

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -22 V

  • Neg Supply Voltage-Min (Vsup):

    -9 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Off-state Isolation-Nom:

    50 dB

  • On-state Resistance-Max (Ron):

    8 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Signal Current-Max:

    0.246 A

  • Supply Current-Max (Isup):

    0.13 mA

  • Supply Voltage-Max (Vsup):

    22 V

  • Supply Voltage-Min (Vsup):

    9 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    242 ns

  • Switch-on Time-Max:

    253 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

ADG5401BCPZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG5401BCPZ-RL7 should include a solid ground plane, decoupling capacitors close to the device, and a separate analog and digital ground plane. Additionally, the device should be placed away from high-frequency sources and heat sources.
  • To ensure reliability in high-temperature applications, it is recommended to follow proper thermal management practices, such as using a heat sink, ensuring good airflow, and keeping the device within its specified operating temperature range.
  • The recommended power-up sequence for the ADG5401BCPZ-RL7 is to power up the VDD supply first, followed by the VSS supply. This ensures that the internal circuitry is properly biased and prevents latch-up or damage.
  • To troubleshoot issues with the ADG5401BCPZ-RL7, start by checking the power supply voltages, ensuring that they are within the specified range. Then, verify that the input signals are correct and that the device is properly configured. If the issue persists, use a logic analyzer or oscilloscope to debug the issue.
  • Yes, the ADG5401BCPZ-RL7 can be used in hot-swappable applications. However, it is recommended to ensure that the device is properly powered down before hot-swapping, and that the power supply is properly sequenced to prevent damage or latch-up.
