ADG5401FBCPZ-RL7 - Analog Devices

Description: Analog Switch ICs +/- 60V OV Protected, HV SPSTx1 Switch

Download ADG5401FBCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

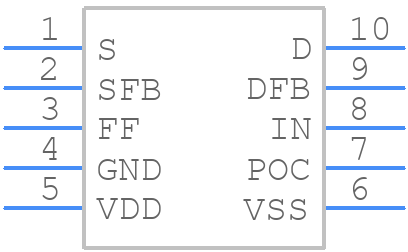

Symbol
ADG5401FBCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG5401FBCPZ-RL7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 10-WFDFN Exposed Pad, CSP
click to zoom
3D Models
ADG5401FBCPZ-RL7 - Analog Devices - 3D model - Small Outline No-lead - 10-WFDFN Exposed Pad, CSP
click to zoom

ADG5401FBCPZ-RL7 Details

  • Manufacturer Part Number:

    ADG5401FBCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    CP-10-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-08-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-XBCS-N10

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -22 V

  • Neg Supply Voltage-Min (Vsup):

    -5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Off-state Isolation-Nom:

    70 dB

  • On-state Resistance-Max (Ron):

    12.5 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    BCS

  • Package Equivalence Code:

    SOLCC10,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.24 mA

  • Supply Voltage-Max (Vsup):

    22 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    17200 ns

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

ADG5401FBCPZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG5401FBCPZ-RL7 should minimize parasitic inductance and capacitance. Use a ground plane, keep signal traces short and away from the device's pins, and avoid vias under the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure reliable operation, follow the recommended operating conditions, including voltage and current ratings. Use a suitable thermal management strategy, such as a heat sink or thermal pad, to maintain a safe junction temperature (Tj). Monitor the device's temperature and adjust the operating conditions accordingly.
  • The recommended power-up sequence is to apply VDD first, followed by VSS. This ensures that the internal circuitry is properly biased and configured before the device is enabled. Avoid applying VSS before VDD, as this can cause unpredictable behavior.
  • The ADG5401FBCPZ-RL7 has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-safe environment.
  • The maximum allowable voltage on the NO/NC pins is VDD + 0.3 V. Exceeding this voltage can cause damage to the device. Ensure that the voltage on these pins is within the recommended range to maintain reliable operation.
