ADG5409BCPZ-REEL7 - Analog Devices

Description: Analog Multiplexer Single 4:1 16-Pin LFCSP EP T/R

Download ADG5409BCPZ-REEL7 Model
Schematic
symbols

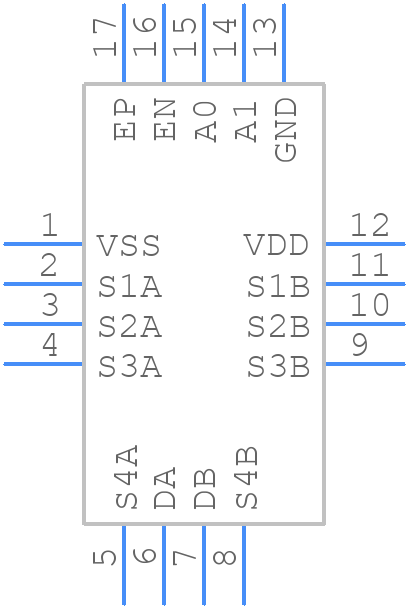

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADG5409BCPZ-REEL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-Lead Lead Frame Chip Scale Package [LFCSP_WQ]
click to zoom
3D Models
ADG5409BCPZ-REEL7 - Analog Devices  - 3D model - Quad Flat No-Lead - 16-Lead Lead Frame Chip Scale Package [LFCSP_WQ]
click to zoom

ADG5409BCPZ-REEL7 Details

  • Manufacturer Part Number:

    ADG5409BCPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, MO-220WGGC, LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-17

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    DIFFERENTIAL MULTIPLEXER

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -22 V

  • Neg Supply Voltage-Min (Vsup):

    -9 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NO

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    60 dB

  • On-state Resistance Match-Nom:

    0.8 Ω

  • On-state Resistance-Max (Ron):

    22 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Signal Current-Max:

    0.03 A

  • Supply Current-Max (Isup):

    0.13 mA

  • Supply Voltage-Max (Vsup):

    22 V

  • Supply Voltage-Min (Vsup):

    9 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    198 ns

  • Switch-on Time-Max:

    242 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm
