ADG5412FBRUZ-RL7 - Analog Devices

Description: Analog Switch ICs -55V Fault Protected, 20V, 15V, +12V

Download ADG5412FBRUZ-RL7 Model

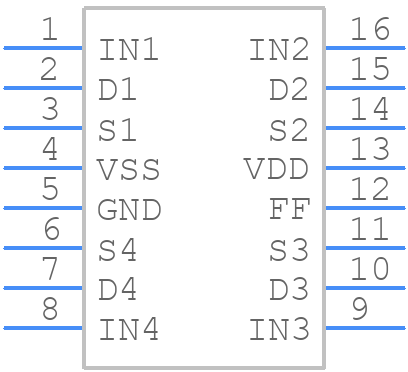

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADG5412FBRUZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 PIN TSSOP*
click to zoom
3D Models
ADG5412FBRUZ-RL7 - Analog Devices  - 3D model - Small Outline Packages - 16 PIN TSSOP*
click to zoom

ADG5412FBRUZ-RL7 Details

  • Manufacturer Part Number:

    ADG5412FBRUZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SPST

  • Input Voltage-Max:

    22 V

  • Input Voltage-Min:

    -5 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -22 V

  • Neg Supply Voltage-Min (Vsup):

    -5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NC

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    70 dB

  • On-state Resistance Match-Nom:

    0.05 Ω

  • On-state Resistance-Max (Ron):

    11.2 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Signal Current-Max:

    0.083 A

  • Supply Current-Max (Isup):

    1.3 mA

  • Supply Voltage-Max (Vsup):

    22 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    555 ns

  • Switch-on Time-Max:

    550 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    DMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADG5412FBRUZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG5412FBRUZ-RL7 should include a solid ground plane, short and direct signal paths, and decoupling capacitors placed close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize EMI.
  • The ADG5412FBRUZ-RL7 requires a single 3.3V or 5V power supply. It's recommended to power the device with a low-noise, low-dropout regulator. Power sequencing is not critical, but it's recommended to power the device after the power supply has stabilized.
  • The ADG5412FBRUZ-RL7 can operate up to 100 MHz. However, the device's performance may degrade at higher frequencies due to increased power consumption and reduced signal integrity. It's recommended to operate the device at frequencies below 50 MHz for optimal performance.
  • The ADG5412FBRUZ-RL7 has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to keep the device temperature below 125°C. Thermal management techniques such as heat sinks, thermal vias, and thermal interface materials can be used to reduce the device temperature.
  • The ADG5412FBRUZ-RL7 has built-in ESD protection diodes on all pins. However, it's still recommended to use external ESD protection devices and follow proper PCB design and handling practices to prevent ESD damage. Latch-up prevention can be achieved by using a latch-up immune design and following proper power-up and power-down sequences.
