ADG5412FTRUZ-EP - Analog Devices

Description: Analog Switch ICs Wideband PLL w/ int ultra low noise VCO

Download ADG5412FTRUZ-EP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

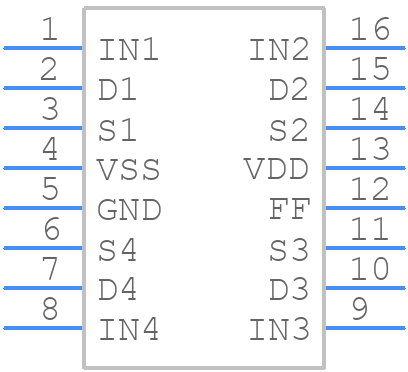

Symbol
ADG5412FTRUZ-EP - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG5412FTRUZ-EP - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
ADG5412FTRUZ-EP - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

ADG5412FTRUZ-EP Details

  • Manufacturer Part Number:

    ADG5412FTRUZ-EP

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -22 V

  • Neg Supply Voltage-Min (Vsup):

    -5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NC

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    70 dB

  • On-state Resistance Match-Nom:

    0.5 Ω

  • On-state Resistance-Max (Ron):

    10 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.2 mm

  • Signal Current-Max:

    0.03 A

  • Supply Current-Max (Isup):

    1.3 mA

  • Supply Voltage-Max (Vsup):

    22 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    555 ns

  • Switch-on Time-Max:

    550 ns

  • Switching:

    MAKE-BEFORE-BREAK

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

ADG5412FTRUZ-EP Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG5412FTRUZ-EP should include a solid ground plane, short and direct signal paths, and decoupling capacitors placed close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize EMI.
  • To ensure reliability and longevity in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow. Additionally, it's recommended to operate the device within its specified temperature range and to avoid exceeding the maximum junction temperature.
  • The recommended power-up sequence for the ADG5412FTRUZ-EP is to apply the power supply voltage (VDD) before the logic input signals. During power-down, the logic input signals should be removed before the power supply voltage (VDD). This sequence helps prevent damage or latch-up.
  • To troubleshoot issues with the ADG5412FTRUZ-EP, start by verifying the power supply voltage and ensuring that it's within the specified range. Check the input signals and output loads to ensure they are within the recommended specifications. Use an oscilloscope to monitor the input and output signals, and check for any signs of oscillation or ringing. If the issue persists, consult the datasheet and application notes for guidance or contact Analog Devices' technical support.
  • When using the ADG5412FTRUZ-EP in a system with multiple power domains or voltage rails, it's essential to ensure that the device is properly powered and that the voltage rails are properly sequenced. Additionally, consider the voltage translation and level-shifting requirements between the different power domains to ensure proper operation and to prevent damage to the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADG5412FTRUZ-EP Overview

Use the download button to access the ADG5412FTRUZ-EP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADG54, or try a keyword search, such as Multiplexers or Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
