ADG5412WBCPZ-REEL7 - Analog Devices

Description: 4 Circuit IC Switch 1:1 15Ohm 16-LFCSP-WQ (4x4) , 9V ~ 40V ,-70dB @ 1MHz , -40°C ~ 125°C (TA)

Download ADG5412WBCPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

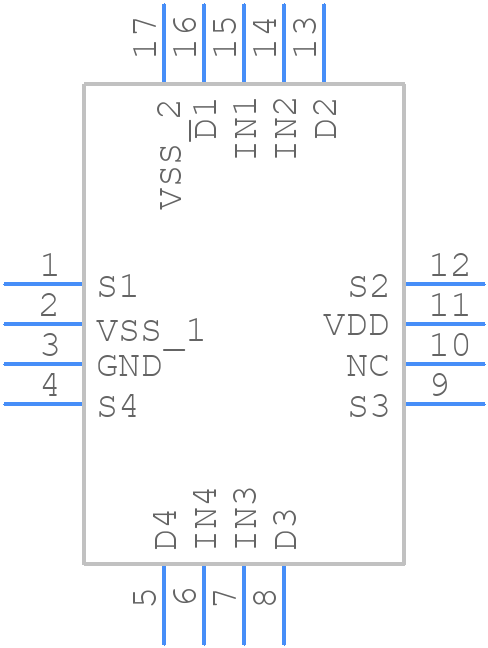

ADG5412WBCPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG5412WBCPZ-REEL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-17
click to zoom
3D Models
ADG5412WBCPZ-REEL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-17
click to zoom

ADG5412WBCPZ-REEL7 Details

  • Manufacturer Part Number:

    ADG5412WBCPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-17

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -22 V

  • Neg Supply Voltage-Min (Vsup):

    -9 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NC

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    78 dB

  • On-state Resistance Match-Nom:

    0.35 Ω

  • On-state Resistance-Max (Ron):

    16 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Signal Current-Max:

    0.17 A

  • Supply Current-Max (Isup):

    0.07 mA

  • Supply Voltage-Max (Vsup):

    22 V

  • Supply Voltage-Min (Vsup):

    9 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    182 ns

  • Switch-on Time-Max:

    262 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADG5412WBCPZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG5412WBCPZ-REEL7 should minimize signal trace lengths, use a solid ground plane, and keep analog and digital signals separate. A 4-layer PCB with a dedicated analog ground layer is recommended. Additionally, the device's exposed pad should be connected to a solid ground plane to improve thermal performance.
  • To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices. This includes providing adequate heat sinking, using a thermally conductive material for the PCB, and keeping the device's junction temperature below the recommended maximum of 125°C. Additionally, the device should be operated within its recommended operating conditions, and the power supply should be decoupled to minimize voltage transients.
  • The recommended power-up sequence for the ADG5412WBCPZ-REEL7 is to first apply the analog supply voltage (VDD) and then the digital supply voltage (VSS). This ensures that the device's internal logic is properly initialized and minimizes the risk of latch-up or other unexpected behavior.
  • To troubleshoot issues with the ADG5412WBCPZ-REEL7, start by verifying that the device is properly powered and that the input signals are within the recommended operating range. Check for any signs of overheating, and ensure that the device is properly soldered and connected to the PCB. Use a logic analyzer or oscilloscope to verify the digital signals, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • The ADG5412WBCPZ-REEL7 should be stored in a dry, cool place, away from direct sunlight and moisture. The device should be handled with anti-static precautions, such as using an anti-static wrist strap or mat, to prevent damage from electrostatic discharge. The device should also be stored in its original packaging or a similar protective package to prevent physical damage.
