ADG5421BCPZ-RL7 - Analog Devices

Description: Analog Switch ICs Latchup Proof,±20V,±15V,+12V,+36V 1xSPDT

Download ADG5421BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

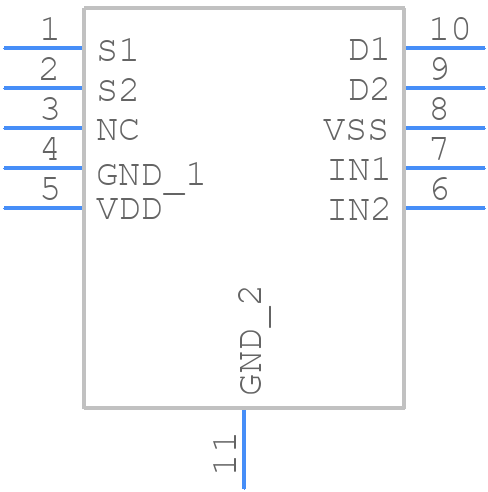

Symbol
ADG5421BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG5421BCPZ-RL7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - ADG5421BCPZ-RL7
click to zoom
3D Models
ADG5421BCPZ-RL7 - Analog Devices - 3D model - Small Outline No-lead - ADG5421BCPZ-RL7
click to zoom

ADG5421BCPZ-RL7 Details

  • Manufacturer Part Number:

    ADG5421BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    CP-10-9

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-XBCS-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -22 V

  • Neg Supply Voltage-Min (Vsup):

    -9 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • On-state Resistance Match-Nom:

    0.1 Ω

  • On-state Resistance-Max (Ron):

    15 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    CSP

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP SCALE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.85 mm

  • Supply Voltage-Max (Vsup):

    22 V

  • Supply Voltage-Min (Vsup):

    9 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-on Time-Max:

    370 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADG5421BCPZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG5421BCPZ-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device. Additionally, it's recommended to derate the device's power consumption and operating frequency at high temperatures.
  • The recommended decoupling capacitors for the ADG5421BCPZ-RL7 are 0.1 μF and 10 μF ceramic capacitors. These capacitors should be placed as close as possible to the device's power pins, with the 0.1 μF capacitor placed closest to the pin and the 10 μF capacitor placed nearby.
  • To troubleshoot issues with the ADG5421BCPZ-RL7, start by verifying the device's power supply voltage, clock frequency, and input signals. Use an oscilloscope to monitor the device's output signals and verify that they are within the expected range. Check the device's thermal performance and ensure that it is operating within the recommended temperature range. If the issue persists, consult the device's datasheet and application notes for guidance.
  • The ADG5421BCPZ-RL7 is not a radiation-hardened device, and it's not recommended for use in radiation-intensive applications. However, if radiation hardening is required, it's essential to consult with Analog Devices Inc. or a qualified radiation-hardening expert to determine the necessary precautions and modifications.
