ADG5434BCPZ-REEL7 - Analog Devices

Description: ANALOG DEVICES - ADG5434BCPZ-REEL7 - ANALOG SWITCH, QUAD, SPDT, LFCSP-20

Download ADG5434BCPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

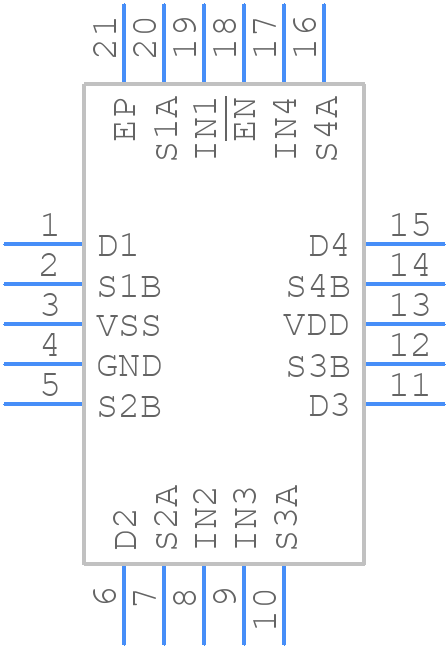

ADG5434BCPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG5434BCPZ-REEL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - ADG5434BCPZ-REEL7
click to zoom
3D Models
ADG5434BCPZ-REEL7 - Analog Devices - 3D model - Quad Flat No-Lead - ADG5434BCPZ-REEL7
click to zoom

ADG5434BCPZ-REEL7 Details

  • Manufacturer Part Number:

    ADG5434BCPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CP-20-8

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e2

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -22 V

  • Neg Supply Voltage-Min (Vsup):

    -9 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    20

  • Off-state Isolation-Nom:

    60 dB

  • On-state Resistance Match-Nom:

    0.3 Ω

  • On-state Resistance-Max (Ron):

    42 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Signal Current-Max:

    0.074 A

  • Supply Current-Max (Isup):

    0.07 mA

  • Supply Voltage-Max (Vsup):

    22 V

  • Supply Voltage-Min (Vsup):

    9 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    140 ns

  • Switch-on Time-Max:

    289 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADG5434BCPZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG5434BCPZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device. Additionally, it's recommended to derate the device's power consumption and operating frequency at high temperatures.
  • The ADG5434BCPZ-REEL7 has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. It's recommended to use an ESD wrist strap or mat, and to handle the devices by the body rather than the pins. Additionally, it's a good idea to use ESD-protected workstations and to ground all equipment and tools.
  • To troubleshoot issues with the ADG5434BCPZ-REEL7, start by reviewing the datasheet and application notes to ensure that the device is being used within its recommended operating conditions. Next, use a logic analyzer or oscilloscope to capture and analyze the device's input and output signals. It's also recommended to check the power supply voltage, decoupling, and PCB layout for any potential issues.
  • When using the ADG5434BCPZ-REEL7 in a radiation-hardened or high-reliability application, it's essential to follow the manufacturer's guidelines for radiation tolerance and to ensure that the device is properly derated for the specific application. Additionally, it's recommended to use a radiation-hardened PCB material, to follow proper PCB design and layout guidelines, and to use a qualified assembly and test process.
