ADG5436FBRUZ-RL7 - Analog Devices

Description: Analogue Switch ICs +/--55V Fault Protected, +/-20V, +/-15V, +12V,

Download ADG5436FBRUZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

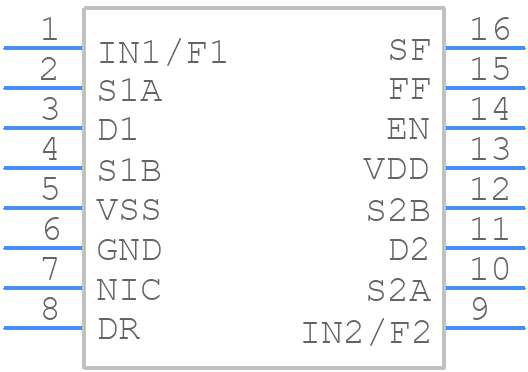

Symbol
ADG5436FBRUZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG5436FBRUZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
ADG5436FBRUZ-RL7 - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

ADG5436FBRUZ-RL7 Details

  • Manufacturer Part Number:

    ADG5436FBRUZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    CAN ALSO OPERATE WITH +/-20 V INPUT

  • Analog IC - Other Type:

    SPDT

  • Input Voltage-Max:

    15 V

  • Input Voltage-Min:

    -15 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -16.5 V

  • Neg Supply Voltage-Min (Vsup):

    -13.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Channels:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    71 dB

  • On-state Resistance Match-Nom:

    0.15 Ω

  • On-state Resistance-Max (Ron):

    11.2 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Signal Current-Max:

    0.113 A

  • Supply Current-Max (Isup):

    0.0012 mA

  • Supply Voltage-Max (Vsup):

    16.5 V

  • Supply Voltage-Min (Vsup):

    13.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    220 ns

  • Switch-on Time-Max:

    570 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADG5436FBRUZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG5436FBRUZ-RL7 should include a solid ground plane, short and direct signal paths, and decoupling capacitors placed close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize EMI.
  • The ADG5436FBRUZ-RL7 requires a single 3.3V or 5V power supply. It's recommended to use a low-dropout linear regulator or a switching regulator with a low noise output to power the device. The power sequencing requirement is to power up the VDD pin before the logic inputs.
  • The maximum operating frequency of the ADG5436FBRUZ-RL7 is 100 MHz. Operating the device at higher frequencies may affect its performance, including increased power consumption, reduced signal integrity, and potential oscillations.
  • The ADG5436FBRUZ-RL7 has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to keep the device temperature below 125°C. This can be achieved by using a heat sink, improving air flow, and reducing power consumption.
  • The ADG5436FBRUZ-RL7 has built-in ESD protection diodes on all pins. However, it's still recommended to use external ESD protection devices, such as TVS diodes, to protect the device from electrostatic discharge. Additionally, the device is designed to prevent latch-up, but it's still important to follow proper PCB design and layout guidelines to minimize the risk of latch-up.
