ADG601BRTZ-REEL - Analog Devices

Description: Analog Switch ICs 60dB 2 Ohm 180MHz CMOS SPST

Download ADG601BRTZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

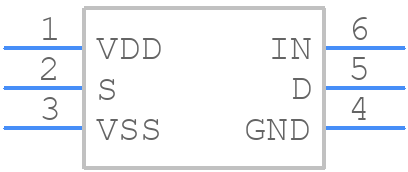

ADG601BRTZ-REEL - Analog Devices - PCB symbol
