ADG608BRUZ-REEL7 - Analog Devices

ADG608BRUZ-REEL7 Details

• Manufacturer Part Number:

  ADG608BRUZ-REEL7

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

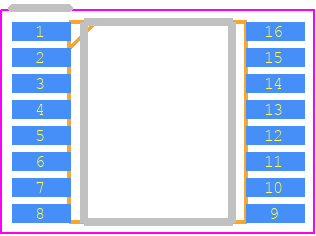

• Part Package Code:

  TSSOP

• Package Description:

  TSSOP-16

• Pin Count:

  16

• Manufacturer Package Code:

  RU-16

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Additional Feature:

  OPERATION WITH SINGLE 3V/5V ALSO POSSIBLE

• Analog IC - Other Type:

  SINGLE-ENDED MULTIPLEXER

• JESD-30 Code:

  R-PDSO-G16

• JESD-609 Code:

  e3

• Length:

  5 mm

• Moisture Sensitivity Level:

  1

• Neg Supply Voltage-Max (Vsup):

  -5.5 V

• Neg Supply Voltage-Min (Vsup):

  -4.5 V

• Neg Supply Voltage-Nom (Vsup):

  -5 V

• Normal Position:

  NO

• Number of Functions:

  1

• Number of Terminals:

  16

• Off-state Isolation-Nom:

  85 dB

• On-state Resistance Match-Nom:

  2 Ω

• On-state Resistance-Max (Ron):

  30 Ω

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output:

  COMMON OUTPUT

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Packing Method:

  TR, 7 INCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.2 mm

• Signal Current-Max:

  0.02 A

• Supply Current-Max (Isup):

  0.002 mA

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Switch-off Time-Max:

  75 ns

• Switch-on Time-Max:

  75 ns

• Switching:

  BREAK-BEFORE-MAKE

• Technology:

  BICMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  4.4 mm
