ADG636YRUZ-REEL7 - Analog Devices

Description: Analog Switch ICs 2:1 400MHz 2.2 Ohm CMOS Dual SPDT

Download ADG636YRUZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

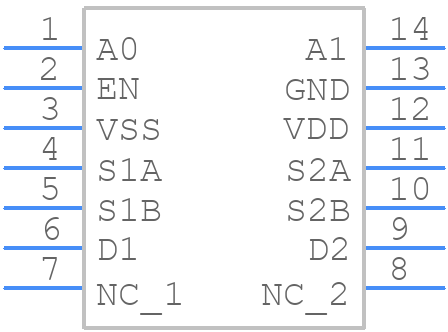

ADG636YRUZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG636YRUZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-14 (TSSOP)
click to zoom
3D Models
ADG636YRUZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - RU-14 (TSSOP)
click to zoom

ADG636YRUZ-REEL7 Details

  • Manufacturer Part Number:

    ADG636YRUZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    RU-14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -5.5 V

  • Neg Supply Voltage-Min (Vsup):

    -2.7 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Normal Position:

    NC

  • Number of Channels:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • Off-state Isolation-Nom:

    65 dB

  • On-state Resistance Match-Nom:

    2 Ω

  • On-state Resistance-Max (Ron):

    115 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Signal Current-Max:

    0.01 A

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    80 ns

  • Switch-on Time-Max:

    135 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADG636YRUZ-REEL7 Frequently Asked Questions (FAQs)

  • For optimal performance, it's recommended to follow Analog Devices' PCB layout guidelines, including using a solid ground plane, minimizing trace lengths, and using thermal vias to dissipate heat. A thermal pad on the bottom of the package can also be connected to a heat sink or a thermal plane to improve heat dissipation.
  • To ensure EMC and reduce EMI, follow proper PCB design practices, such as using a solid ground plane, minimizing loop areas, and using shielding and filtering components. Additionally, consider using a mu-metal shield around the device and following Analog Devices' EMI reduction guidelines.
  • The recommended power-up sequence is to apply VDD first, followed by VSS. For power-down, the sequence should be reversed. It's also important to ensure that the input signals are stable and within the recommended operating range before applying power to the device.
  • The ADG636YRUZ-REEL7 has built-in overvoltage protection, but it's still important to implement external protection circuits to prevent damage from voltage transients. For undervoltage conditions, consider using a voltage supervisor or reset circuit to ensure the device operates within its recommended voltage range.
  • The ADG636YRUZ-REEL7 has a maximum junction temperature of 150°C. Derating considerations include reducing the power dissipation by 1.67 mW/°C above 25°C. It's essential to follow Analog Devices' thermal management guidelines to ensure reliable operation and prevent overheating.
