ADG6436BCPZ-REEL7 - Analog Devices

Description: Low RON: 0.5 Ω ► High continuous current of up to 847 mA ► Flat RON across signal range: 0.003 Ω ► THD of −109 dB at 1 kHz ► Improved balance between on resistance and on capacitance ► Low RON (0.5 Ω) and CON (95 pF) ► 1.8 V, 3.3 V, and 5 V logic compatibility ► 16-lead, 4 mm × 4 mm LFCSP ► Pin to pin compatible with the ADG5436 and ADG5436F ► Fully specified at ±20 V and +36 V ► Operational with asymmetric power supp

Download ADG6436BCPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

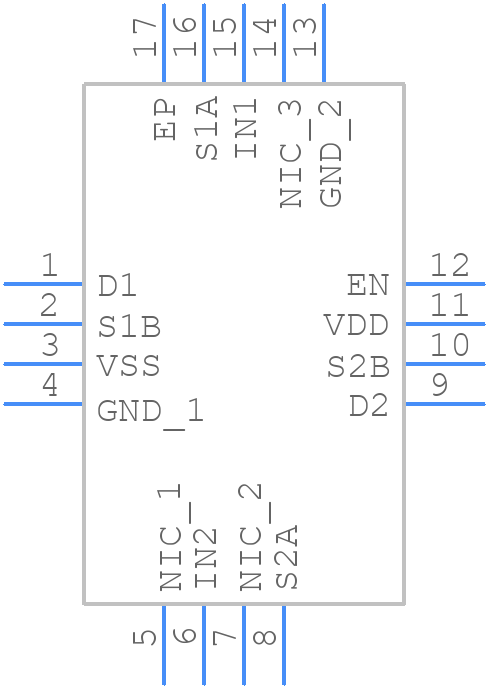

ADG6436BCPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG6436BCPZ-REEL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-16-17)
click to zoom
3D Models
ADG6436BCPZ-REEL7 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-16-17)
click to zoom

ADG6436BCPZ-REEL7 Details

  • Manufacturer Part Number:

    ADG6436BCPZ-REEL7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    S-XQCC-N16

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -22 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -20 V

  • Number of Channels:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    77 dB

  • On-state Resistance Match-Nom:

    0.003 Ω

  • On-state Resistance-Max (Ron):

    1 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.33 mA

  • Supply Voltage-Max (Vsup):

    22 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    20 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    484 ns

  • Switch-on Time-Max:

    499 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

ADG6436BCPZ-REEL7 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ADG6436BCPZ-REEL7 can be found in the ADG6436 evaluation board documentation, which provides a reference design for optimal performance. Additionally, Analog Devices provides a PCB layout guide that can be used as a starting point for custom designs.
  • To ensure reliable operation of the ADG6436BCPZ-REEL7 in high-temperature environments, it is recommended to follow proper thermal management practices, such as providing adequate heat sinking and airflow. Additionally, the device should be operated within its specified temperature range, and the junction temperature should be monitored to prevent overheating.
  • The maximum allowable voltage on the VDD pin of the ADG6436BCPZ-REEL7 is 5.5V. Exceeding this voltage can cause permanent damage to the device.
  • Yes, the ADG6436BCPZ-REEL7 can be used in a 3.3V system. The device is specified to operate from a single 3.3V supply, and its logic inputs are compatible with 3.3V logic levels.
  • To troubleshoot issues with the ADG6436BCPZ-REEL7, it is recommended to follow a systematic approach, starting with verifying the power supply and clock signals. Then, check the logic inputs and outputs, and use a logic analyzer or oscilloscope to verify the signal integrity. If the issue persists, consult the ADG6436 datasheet and application notes for guidance, or contact Analog Devices technical support for further assistance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADG6436BCPZ-REEL7 Overview

Use the download button to access the ADG6436BCPZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADG64, or try a keyword search, such as Multiplexers or Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
