ADG701BRJZ-500RL7 - Analog Devices

Description: Analog Devices ADG701BRJZ-500RL7, Analogue Switch Single SPST, 5 V, 5-Pin SOT-23

Download ADG701BRJZ-500RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

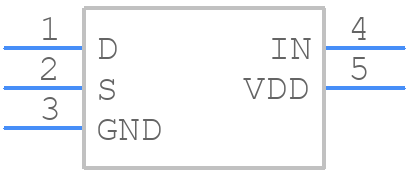

ADG701BRJZ-500RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG701BRJZ-500RL7 - Analog Devices PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - RJ-5 BSC (SOT23)
click to zoom
3D Models
ADG701BRJZ-500RL7 - Analog Devices - 3D model - SOT23 (5-Pin) - RJ-5 BSC (SOT23)
click to zoom

ADG701BRJZ-500RL7 Details

  • Manufacturer Part Number:

    ADG701BRJZ-500RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    LEAD FREE, MO-178AA, SOT-23, 5 PIN

  • Pin Count:

    5

  • Manufacturer Package Code:

    RJ-5

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Off-state Isolation-Nom:

    55 dB

  • On-state Resistance-Max (Ron):

    5 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSOP5/6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Signal Current-Max:

    0.03 A

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    13 ns

  • Switch-on Time-Max:

    20 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Width:

    1.6 mm

ADG701BRJZ-500RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG701BRJZ-500RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device. Additionally, it's recommended to derate the device's power consumption and operating frequency at high temperatures.
  • To minimize EMI and RFI, it's recommended to use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead on the power supply lines. Additionally, using a low-pass filter on the output and a shielded cable for the output signal can help reduce EMI and RFI.
  • To troubleshoot issues with the ADG701BRJZ-500RL7, start by checking the power supply voltage, ensuring it's within the recommended range. Then, verify the input and output signals using an oscilloscope, and check for any signs of overheating or physical damage. If the issue persists, consult the datasheet and application notes for guidance, or contact Analog Devices' technical support.
  • When using the ADG701BRJZ-500RL7 in a high-reliability or safety-critical application, it's essential to follow a rigorous design and testing process, including fault tree analysis, failure modes and effects analysis (FMEA), and environmental stress screening (ESS). Additionally, ensure that the device is used within its recommended operating conditions, and that the system is designed with redundancy and fail-safes to mitigate potential failures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADG701BRJZ-500RL7 Overview

Use the download button to access the ADG701BRJZ-500RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADG70, or try a keyword search, such as Multiplexers or Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
