ADG704BRM-REEL7 - Analog Devices

Description: Analog Multiplexer Single 4:1 10-Pin MSOP T/R

Download ADG704BRM-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

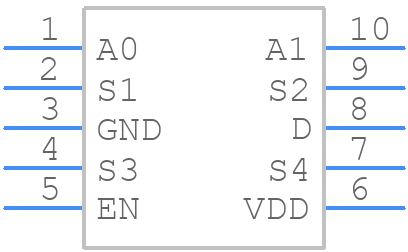

Symbol
ADG704BRM-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG704BRM-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10-Lead mSOIC (RM-10)-1
click to zoom
3D Models
ADG704BRM-REEL7 - Analog Devices - 3D model - Small Outline Packages - 10-Lead mSOIC (RM-10)-1
click to zoom

ADG704BRM-REEL7 Details

  • Manufacturer Part Number:

    ADG704BRM-REEL7

  • Source Url Status Check Date:

    2013-05-01 14:56:37.974

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    MICRO, SOIC-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Additional Feature:

    CAN ALSO OPERATE WITH 5 V SUPPLY

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e0

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Off-state Isolation-Nom:

    60 dB

  • On-state Resistance Match-Nom:

    0.1 Ω

  • On-state Resistance-Max (Ron):

    8 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Signal Current-Max:

    0.03 A

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    16 ns

  • Switch-on Time-Max:

    24 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

ADG704BRM-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG704BRM-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device. Additionally, it's recommended to derate the device's power consumption and operating frequency at high temperatures.
  • To prevent ESD damage, it's recommended to handle the ADG704BRM-REEL7 in an ESD-controlled environment, use ESD-protective packaging, and wear ESD-protective wrist straps or mats. It's also essential to ground all equipment and tools before handling the device.
  • The ADG704BRM-REEL7 is not specifically designed or tested for radiation-hardened applications. If radiation hardness is required, it's recommended to consult with Analog Devices Inc. or a qualified radiation-hardened component supplier.
  • For soldering and rework, it's recommended to follow the guidelines outlined in the JEDEC J-STD-020 standard. This includes using a soldering iron with a temperature range of 235°C to 245°C, and using a solder with a melting point above 217°C.
