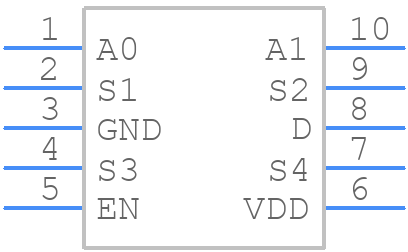

ADG704BRMZ - Analog Devices

ADG704BRMZ Details

• Manufacturer Part Number:

  ADG704BRMZ

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SOIC

• Package Description:

  MICRO, SOIC-10

• Pin Count:

  10

• Manufacturer Package Code:

  RM-10

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Additional Feature:

  CAN ALSO OPERATE WITH 5 V SUPPLY

• Analog IC - Other Type:

  SINGLE-ENDED MULTIPLEXER

• JESD-30 Code:

  S-PDSO-G10

• JESD-609 Code:

  e3

• Length:

  3 mm

• Moisture Sensitivity Level:

  1

• Normal Position:

  NO

• Number of Channels:

  4

• Number of Functions:

  1

• Number of Terminals:

  10

• Off-state Isolation-Nom:

  60 dB

• On-state Resistance Match-Nom:

  0.1 Ω

• On-state Resistance-Max (Ron):

  8 Ω

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output:

  COMMON OUTPUT

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP10,.19,20

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.1 mm

• Signal Current-Max:

  0.03 A

• Supply Current-Max (Isup):

  0.001 mA

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  1.8 V

• Supply Voltage-Nom (Vsup):

  3 V

• Surface Mount:

  YES

• Switch-off Time-Max:

  16 ns

• Switch-on Time-Max:

  24 ns

• Switching:

  BREAK-BEFORE-MAKE

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3 mm
