ADG712BRUZ-REEL7 - Analog Devices

Description: Analog Devices ADG712BRUZ-REEL7, Analogue Switch Quad SPST, 5 V, 16-Pin TSSOP

Download ADG712BRUZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

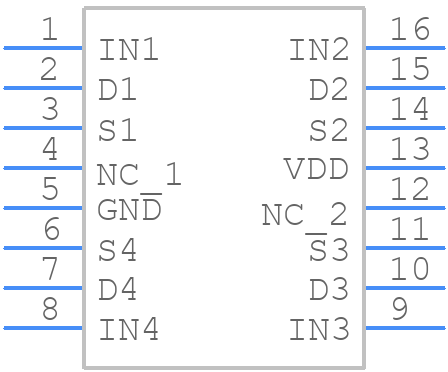

ADG712BRUZ-REEL7 - Analog Devices - PCB symbol
