ADG715BRU - Analog Devices

Description: Analog Switch ICs 2.5 Ohm 2.7V CMOS Octal SPST

Download ADG715BRU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

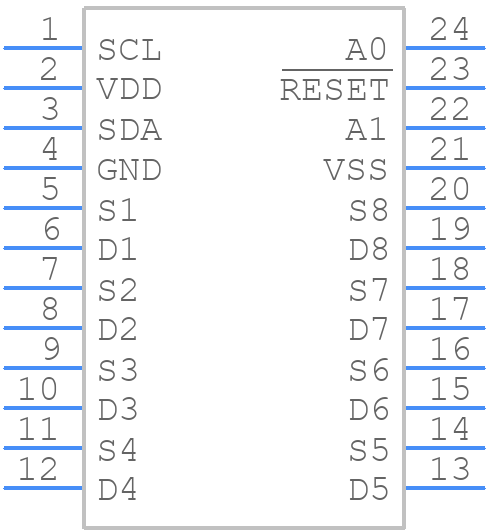

ADG715BRU - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG715BRU - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-24 (TSSOP)
click to zoom
3D Models
ADG715BRU - Analog Devices - 3D model - Small Outline Packages - RU-24 (TSSOP)
click to zoom

ADG715BRU Details

  • Manufacturer Part Number:

    ADG715BRU

  • Source Url Status Check Date:

    2013-05-01 14:56:38.112

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    MO-153AD, TSSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RU-24

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES WITH 2.7V TO 5.5V SINGLE SUPPLY

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e0

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -2.75 V

  • Neg Supply Voltage-Min (Vsup):

    -2.25 V

  • Neg Supply Voltage-Nom (Vsup):

    -2.5 V

  • Normal Position:

    NC

  • Number of Channels:

    1

  • Number of Functions:

    8

  • Number of Terminals:

    24

  • Off-state Isolation-Nom:

    60 dB

  • On-state Resistance Match-Nom:

    0.4 Ω

  • On-state Resistance-Max (Ron):

    4.5 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Signal Current-Max:

    0.03 A

  • Supply Current-Max (Isup):

    0.025 mA

  • Supply Voltage-Max (Vsup):

    2.75 V

  • Supply Voltage-Min (Vsup):

    2.25 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    190 ns

  • Switch-on Time-Max:

    200 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

ADG715BRU Frequently Asked Questions (FAQs)

  • To minimize parasitic inductance and capacitance, it is recommended to use a symmetrical layout with the switch pins (Sx) and the source pins (Vx) as close as possible to the device. Use short, wide traces for the switch pins and the source pins, and avoid vias and right-angle bends. Additionally, use a solid ground plane underneath the device to reduce parasitic inductance.
  • The ADG715BRU requires a single 1.8 V to 5.5 V power supply (VDD) and a digital control input (IN) to operate. Ensure that VDD is powered up before the IN signal is applied. The power sequencing requirement is that VDD must be stable and within its operating range before the IN signal is toggled. It is also recommended to add a 0.1 μF bypass capacitor between VDD and GND to filter out noise and reduce power supply ripple.
  • The ADG715BRU can operate up to 100 MHz, but the maximum frequency of operation depends on the specific application and the signal being switched. Higher frequencies can lead to increased switch-on resistance, reduced signal integrity, and increased power consumption. It is recommended to consult the datasheet and application notes for specific guidance on frequency of operation and switch performance.
  • The ADG715BRU has built-in ESD protection, but it is still recommended to take precautions to prevent ESD and latch-up events. Use ESD-safe handling and storage procedures, and ensure that the device is properly soldered and connected to a PCB with a solid ground plane. Additionally, use TVS diodes or other ESD protection devices on the input and output pins to protect against ESD events.
  • The recommended operating temperature range for the ADG715BRU is -40°C to +125°C. Operating the device outside this range can affect its performance, including increased switch-on resistance, reduced signal integrity, and increased power consumption. It is recommended to consult the datasheet and application notes for specific guidance on temperature range and device performance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADG715BRU Overview

Use the download button to access the ADG715BRU schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADG71, or try a keyword search, such as Multiplexers or Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
