ADG719BRTZ-REEL7 - Analog Devices

Description: CMOS 1.8 V to 5.5 V, 2.5Ω 2:1 Mux/SPDT Switch in SOT-23

Download ADG719BRTZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

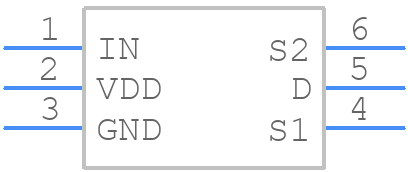

Symbol
ADG719BRTZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG719BRTZ-REEL7 - Analog Devices PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - (RJ-6)
click to zoom
3D Models
ADG719BRTZ-REEL7 - Analog Devices - 3D model - SOT23 (6-Pin) - (RJ-6)
click to zoom

ADG719BRTZ-REEL7 Details

  • Manufacturer Part Number:

    ADG719BRTZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MO-178AB, SOT-23, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    RJ-6

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Off-state Isolation-Nom:

    67 dB

  • On-state Resistance Match-Nom:

    0.1 Ω

  • On-state Resistance-Max (Ron):

    12 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSOP6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Signal Current-Max:

    0.03 A

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    8 ns

  • Switch-on Time-Max:

    15 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

ADG719BRTZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG719BRTZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device. Additionally, the device should be operated within its specified temperature range.
  • The recommended power-up sequence for the ADG719BRTZ-REEL7 is to first apply the analog supply voltage (VDDA) and then the digital supply voltage (VDDD). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent any potential latch-up conditions.
  • To troubleshoot issues with the ADG719BRTZ-REEL7, start by verifying that the power supplies are within the specified range and that the device is properly configured. Check the input and output signals using an oscilloscope to identify any anomalies. If the issue persists, consult the datasheet and application notes for guidance, or contact Analog Devices' technical support team for assistance.
  • The recommended method for soldering the ADG719BRTZ-REEL7 is to use a reflow soldering process with a peak temperature of 260°C (500°F) for a maximum of 20 seconds. It's essential to follow the recommended soldering profile to prevent damage to the device.
