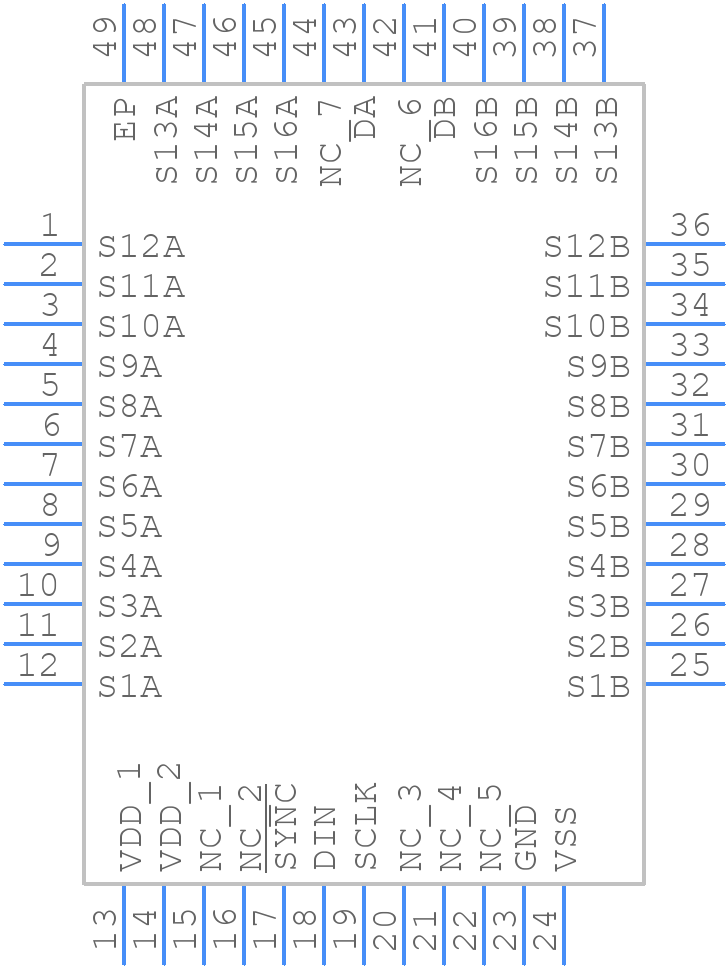

ADG725BCPZ - Analog Devices

ADG725BCPZ Details

• Manufacturer Part Number:

  ADG725BCPZ

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFN

• Package Description:

  7 X 7 MM, MO-220VKKD-2, LFCSP-48

• Pin Count:

  48

• Manufacturer Package Code:

  CP-48-4

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Additional Feature:

  ALSO OPERATE WITH 1.8 V TO 5.5 V SINGLE SUPPLY

• Analog IC - Other Type:

  DIFFERENTIAL MULTIPLEXER

• JESD-30 Code:

  S-XQCC-N48

• JESD-609 Code:

  e3

• Length:

  7 mm

• Moisture Sensitivity Level:

  3

• Neg Supply Voltage-Max (Vsup):

  -2.75 V

• Neg Supply Voltage-Min (Vsup):

  -2.25 V

• Neg Supply Voltage-Nom (Vsup):

  -2.5 V

• Normal Position:

  NO

• Number of Channels:

  16

• Number of Functions:

  1

• Number of Terminals:

  48

• Off-state Isolation-Nom:

  72 dB

• On-state Resistance Match-Nom:

  0.3 Ω

• On-state Resistance-Max (Ron):

  5.5 Ω

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output:

  SEPARATE OUTPUT

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1 mm

• Signal Current-Max:

  0.03 A

• Supply Current-Max (Isup):

  0.02 mA

• Supply Voltage-Max (Vsup):

  2.75 V

• Supply Voltage-Min (Vsup):

  2.25 V

• Supply Voltage-Nom (Vsup):

  2.5 V

• Surface Mount:

  YES

• Switch-off Time-Max:

  75 ns

• Switch-on Time-Max:

  75 ns

• Switching:

  BREAK-BEFORE-MAKE

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  7 mm
