Please enter a minimum 3 letters or numbers
Technical Content
Part Image

ADG728BRU-REEL - Analog Devices

Description: IC MUX/DEMUX 8X1 16TSSOP

Download ADG728BRU-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

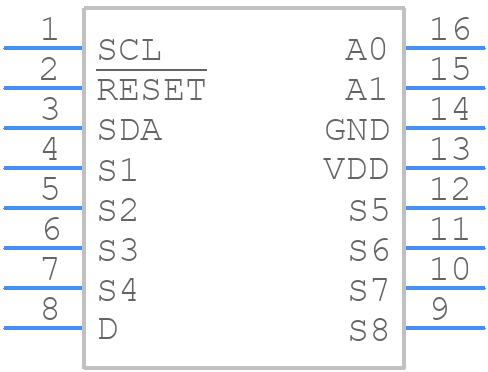

ADG728BRU-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG728BRU-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RU-16)
click to zoom
3D Models
ADG728BRU-REEL - Analog Devices - 3D model - Small Outline Packages - (RU-16)
click to zoom

ADG728BRU-REEL Details

  • Manufacturer Part Number:

    ADG728BRU-REEL

  • Source Url Status Check Date:

    2013-05-01 14:56:38.184

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    AUDIO/VIDEO SWITCH

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e0

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    55 dB

  • On-state Resistance Match-Nom:

    0.4 Ω

  • On-state Resistance-Max (Ron):

    11 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Signal Current-Max:

    0.01 A

  • Supply Current-Max (Isup):

    0.02 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    180 ns

  • Switch-on Time-Max:

    200 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADG728BRU-REEL Frequently Asked Questions (FAQs)

  • A good PCB layout practice is to keep the signal paths short and direct, use a solid ground plane, and avoid running digital and analog signals together. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground layer to reduce noise and interference.
  • The ADG728BRU-REEL requires a single 1.8V to 5.5V power supply. It's essential to decouple the power pins with 0.1uF and 10uF capacitors to reduce noise and ensure stable operation. Additionally, use a low-dropout linear regulator (LDO) to regulate the power supply voltage.
  • The ADG728BRU-REEL can support data rates up to 100 Mbps, but the actual data rate depends on the specific application, PCB layout, and signal quality. It's recommended to consult the datasheet and application notes for more information on achieving high-speed data transfer.
  • The ADG728BRU-REEL is a bidirectional switch, and the direction of the signal is controlled by the EN pin. To configure the device for bidirectional communication, connect the EN pin to a digital output that can toggle between high and low states to switch the direction of the signal.
  • The ADG728BRU-REEL is specified to operate over a temperature range of -40°C to +125°C. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADG728BRU-REEL Overview

Use the download button to access the ADG728BRU-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADG72, or try a keyword search, such as Multiplexers or Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.

Parts related to ADG728BRU-REEL

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

ADG728BRU-REEL Alternates

Showing results

Image Part Number Model
Part Image ADG728BRUZ-REEL7 Rochester Electronics LLC

8-CHANNEL, AUDIO/VIDEO SWITCH, PDSO16, TSSOP-16
Part Image ADG728BRU Rochester Electronics LLC

8-CHANNEL, AUDIO/VIDEO SWITCH, PDSO16, TSSOP-16
Part Image ADG728BRUZ Rochester Electronics LLC

8-CHANNEL, AUDIO/VIDEO SWITCH, PDSO16, TSSOP-16
Part Image ADG728BRU-REEL7 Analog Devices Inc

Audio/Video Switch, 1 Func, 8 Channel, CMOS, PDSO16
Part Image ADG728BRUZ-REEL Analog Devices Inc

Audio/Video Switch, 1 Func, 8 Channel, CMOS, PDSO16
For a full list of alternate parts for ADG728BRU-REEL, check out Findchips.com
