A good PCB layout for the ADG736BRMZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device. Additionally, it's recommended to derate the device's power consumption and operating frequency at high temperatures.
The ADG736BRMZ-REEL7 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding oneself before handling the device, and using an ESD wrist strap or mat.
The ADG736BRMZ-REEL7 is not specifically designed for radiation-hardened applications. However, Analog Devices Inc. does offer radiation-hardened versions of some of their products. It's recommended to contact Analog Devices Inc. directly to inquire about radiation-hardened options.
The ADG736BRMZ-REEL7 should be stored in a dry, cool place, away from direct sunlight and moisture. It's recommended to store the devices in their original packaging or in a sealed bag with desiccant to maintain a dry environment. Handling should be done with clean, dry gloves and a wrist strap to prevent ESD damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADG736BRMZ-REEL7 Overview

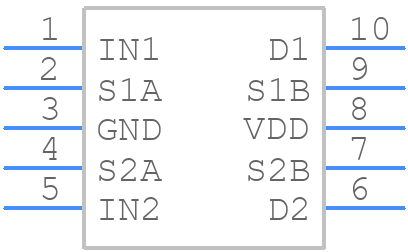

Use the download button to access the ADG736BRMZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADG73,
or try a keyword search, such as Multiplexers or Switches
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
