ADG736LBRMZ-REEL7 - Analog Devices

Description: Analog Switch ICs LOW V 2x SPDT IC WITH LOW LEAKAGE

Download ADG736LBRMZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

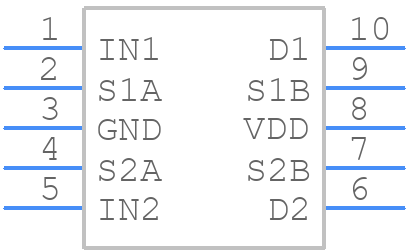

Symbol
ADG736LBRMZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG736LBRMZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10-Lead Mini Small Outline Package [MSOP] (RM-10)_2021
click to zoom
3D Models
ADG736LBRMZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - 10-Lead Mini Small Outline Package [MSOP] (RM-10)_2021
click to zoom

ADG736LBRMZ-REEL7 Details

  • Manufacturer Part Number:

    ADG736LBRMZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    LEAD FREE, MO-187BA, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Off-state Isolation-Nom:

    82 dB

  • On-state Resistance Match-Nom:

    0.1 Ω

  • On-state Resistance-Max (Ron):

    8 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Signal Current-Max:

    0.03 A

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    10 ns

  • Switch-on Time-Max:

    20 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADG736LBRMZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG736LBRMZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device. Additionally, the device should be operated within its specified temperature range.
  • To prevent ESD damage, it's recommended to handle the ADG736LBRMZ-REEL7 in an ESD-controlled environment, use ESD-protective packaging, and wear an ESD wrist strap or use an ESD mat. It's also essential to follow proper handling and storage procedures.
  • The ADG736LBRMZ-REEL7 is not specifically designed for use in radiation-intensive environments. If you need a radiation-hardened device, you should consider a different part. However, if you still want to use the ADG736LBRMZ-REEL7, you should consult with Analog Devices Inc. for guidance on radiation tolerance and potential mitigation strategies.
  • To troubleshoot issues with the ADG736LBRMZ-REEL7, start by consulting the datasheet and application notes. Check the power supply, clock signals, and input/output connections. Use oscilloscopes and logic analyzers to debug the issue. If the problem persists, contact Analog Devices Inc. support for further assistance.
