ADG7421FBCPZ-RL7 - Analog Devices

Description: Analog Switch ICs +/- 60V OV Protected, 5V SPSTx1 Switch

Download ADG7421FBCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

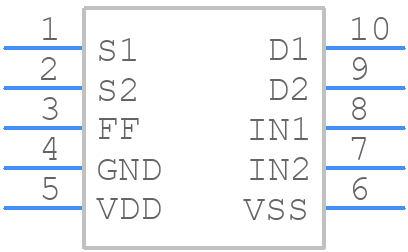

Symbol
ADG7421FBCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG7421FBCPZ-RL7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-10-16
click to zoom
3D Models
ADG7421FBCPZ-RL7 - Analog Devices - 3D model - Small Outline No-lead - CP-10-16
click to zoom

ADG7421FBCPZ-RL7 Details

  • Manufacturer Part Number:

    ADG7421FBCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    CP-10-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-XBCS-N10

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Off-state Isolation-Nom:

    64 dB

  • On-state Resistance Match-Nom:

    0.01 Ω

  • On-state Resistance-Max (Ron):

    23 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    BCS

  • Package Equivalence Code:

    SOLCC10,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.85 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    210 ns

  • Switch-on Time-Max:

    5000 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    2 mm

ADG7421FBCPZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG7421FBCPZ-RL7 should include a solid ground plane, separate analog and digital grounds, and keep the analog and digital signals separate. Additionally, use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize EMI and noise.
  • To ensure proper powering and decoupling of the ADG7421FBCPZ-RL7, use a high-quality power supply with low ripple and noise, and add decoupling capacitors (e.g., 10uF and 100nF) close to the device's power pins. Also, use a 0.1uF capacitor between the VCC and GND pins.
  • The ADG7421FBCPZ-RL7 can operate up to 100 MHz, but the actual operating frequency depends on the specific application and the quality of the PCB layout and design.
  • To handle thermal management, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the airflow around the device. Also, follow the recommended thermal design guidelines in the datasheet.
  • The recommended soldering profile for the ADG7421FBCPZ-RL7 is a peak temperature of 240°C, with a dwell time of 30-60 seconds above 217°C. Follow the recommended soldering guidelines in the datasheet and use a soldering iron with a temperature control.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

ADG7421FBCPZ-RL7 Overview

Use the download button to access the ADG7421FBCPZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADG74, or try a keyword search, such as Multiplexers or Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
