ADG774ABCPZ-REEL - Analog Devices

Description: Multiplexer Switch ICs 1.8V5.5V Quad SPDT switch

Download ADG774ABCPZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

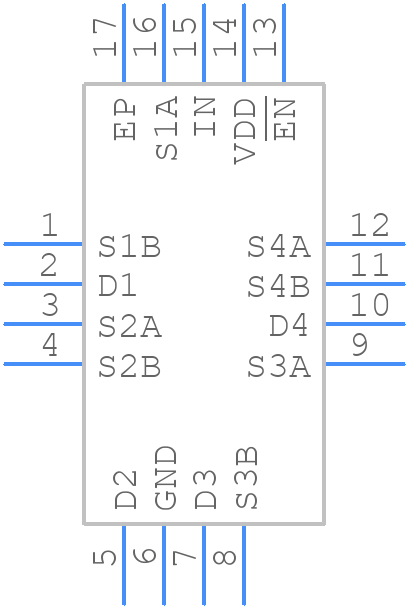

ADG774ABCPZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG774ABCPZ-REEL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-16-27)
click to zoom
3D Models
ADG774ABCPZ-REEL - Analog Devices - 3D model - Quad Flat No-Lead - (CP-16-27)
click to zoom

ADG774ABCPZ-REEL Details

  • Manufacturer Part Number:

    ADG774ABCPZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-27

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES WITH 5V NOMINAL SUPPLY

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Normal Position:

    NO/NC

  • Number of Channels:

    2

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    65 dB

  • On-state Resistance Match-Nom:

    0.15 Ω

  • On-state Resistance-Max (Ron):

    6 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Signal Current-Max:

    0.1 A

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Max (Vsup):

    3.3 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    8 ns

  • Switch-on Time-Max:

    14 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

ADG774ABCPZ-REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG774ABCPZ-REEL involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device. Additionally, it's recommended to derate the device's power consumption and operating frequency at high temperatures.
  • The ADG774ABCPZ-REEL has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding oneself before handling the device, and using ESD-protective packaging.
  • The ADG774ABCPZ-REEL is not specifically designed for radiation-hardened applications. However, Analog Devices Inc. does offer radiation-hardened versions of some of their products. It's recommended to contact Analog Devices Inc. directly to inquire about radiation-hardened options.
  • The ADG774ABCPZ-REEL should be stored in a dry, cool place, away from direct sunlight and moisture. It's recommended to store the devices in their original packaging or in a sealed bag with desiccant to maintain a dry environment. Handling should be done with ESD-safe materials and grounding oneself before handling the device.
