ADG774BRZ-REEL7 - Analog Devices

Description: Multiplexer Switch ICs LOW VOLTAGE QUAD 2/1 MUX

Download ADG774BRZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

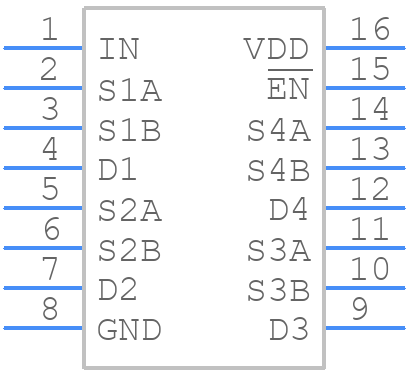

Symbol
ADG774BRZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG774BRZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-16 (SOIC)
click to zoom
3D Models
ADG774BRZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - R-16 (SOIC)
click to zoom

ADG774BRZ-REEL7 Details

  • Manufacturer Part Number:

    ADG774BRZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    LEAD FREE, MS-012AC, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    R-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATE AT 5V SUPPLY

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO/NC

  • Number of Channels:

    2

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    65 dB

  • On-state Resistance Match-Nom:

    0.15 Ω

  • On-state Resistance-Max (Ron):

    9 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Signal Current-Max:

    0.1 A

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Max (Vsup):

    3.3 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    11 ns

  • Switch-on Time-Max:

    21 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ADG774BRZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG774BRZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing trace lengths and loops. It's also recommended to place the device near the analog signal sources and keep the digital signals away from the analog signals.
  • To ensure reliability and stability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and keeping the device within its recommended operating temperature range.
  • The recommended power-up sequence for the ADG774BRZ-REEL7 is to power up the analog supply (VDDA) first, followed by the digital supply (VDD). During power-down, the sequence should be reversed. It's also recommended to ensure that the power supplies are stable and within the recommended voltage range before applying signals to the device.
  • To troubleshoot issues with the ADG774BRZ-REEL7, start by verifying the power supply voltages and ensuring that they are within the recommended range. Check the device's operating temperature and ensure that it is within the recommended range. Use an oscilloscope to monitor the device's input and output signals, and check for any signs of noise or oscillation. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • To protect the ADG774BRZ-REEL7 from electrostatic discharge (ESD), it's recommended to handle the device by the body, use an anti-static wrist strap or mat, and store the device in an anti-static bag or container. It's also recommended to use ESD-protected workstations and equipment during assembly and testing.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADG774BRZ-REEL7 Overview

Use the download button to access the ADG774BRZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADG77, or try a keyword search, such as Multiplexers or Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
