ADG801BRTZ-500RL7 - Analog Devices

Description: Analog Devices ADG801BRTZ-500RL7, Analogue SPST Switch Single SPST, 5 V, 6-Pin SOT-23

Download ADG801BRTZ-500RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

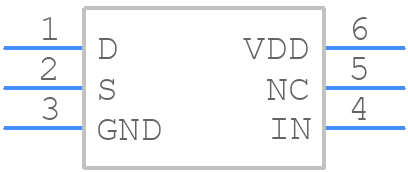

ADG801BRTZ-500RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG801BRTZ-500RL7 - Analog Devices PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - RJ-6 (SOT23)
click to zoom
3D Models
ADG801BRTZ-500RL7 - Analog Devices - 3D model - SOT23 (6-Pin) - RJ-6 (SOT23)
click to zoom

ADG801BRTZ-500RL7 Details

  • Manufacturer Part Number:

    ADG801BRTZ-500RL7

  • Source Url Status Check Date:

    2013-05-01 14:56:38.447

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MO-178AB, SOT-23, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    RJ-6

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Off-state Isolation-Nom:

    61 dB

  • On-state Resistance-Max (Ron):

    0.6 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSOP6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Signal Current-Max:

    0.4 A

  • Supply Current-Max (Isup):

    0.002 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    15 ns

  • Switch-on Time-Max:

    55 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Width:

    1.6 mm

ADG801BRTZ-500RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG801BRTZ-500RL7 involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, a thermal pad on the bottom of the package should be connected to a thermal relief pattern on the PCB to improve heat dissipation.
  • To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the VEE pin to a stable -5V power supply. The input voltage range is ±2.5V, and the output voltage range is ±4.5V. Additionally, decouple the power supplies with 0.1uF capacitors to reduce noise.
  • The ADG801BRTZ-500RL7 has a bandwidth of 500MHz, making it suitable for high-frequency applications. However, the maximum operating frequency depends on the specific application and the quality of the PCB layout. In general, the device can operate up to 300MHz with minimal signal degradation.
  • To protect the ADG801BRTZ-500RL7 from overvoltage and ESD damage, use voltage clamps or transient voltage suppressors on the input and output lines. Additionally, follow proper ESD handling procedures when handling the device, and use an ESD-protected workstation or mat.
  • The thermal resistance of the ADG801BRTZ-500RL7 package is 25°C/W (junction-to-ambient) and 10°C/W (junction-to-case). Proper thermal management is crucial to ensure the device operates within its specified temperature range.
