- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for ADG804YRMZ
- Part Number ADG804YRMZ
- Manufacturer Analog Devices
- Pin Count 10
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - RM-10__js
- Released Date Jan 10, 2017
- Last Modified Date May 27, 2025 4:11 AM UTC
- Pinout / Pin List Click Here (Member Only)
ADG804YRMZ Details
-
Manufacturer Part Number:
ADG804YRMZ
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
TSSOP
-
Package Description:
MSOP-10
-
Pin Count:
10
-
Manufacturer Package Code:
RM-10
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
ADG804YRMZ Frequently Asked Questions (FAQs)
-
A good PCB layout for the ADG804YRMZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help reduce EMI and noise.
-
To ensure proper powering and decoupling of the ADG804YRMZ, use a low-ESR capacitor (e.g., 0.1 μF) between the VDD and GND pins, and a larger capacitor (e.g., 10 μF) between the VDD and GND pins for bulk decoupling. Also, use a low-dropout regulator (LDO) or a switching regulator with a low noise output to power the device.
-
The ADG804YRMZ is a high-speed analog switch with a maximum operating frequency of 200 MHz. However, the actual operating frequency may be limited by the specific application, PCB layout, and signal integrity considerations.
-
The ADG804YRMZ has a built-in power-on reset (POR) and brown-out reset (BOR) features. To handle these features, ensure that the power supply voltage (VDD) is stable and within the recommended operating range (1.65 V to 3.6 V) before applying the input signals. Also, use a capacitor (e.g., 0.1 μF) between the VDD and GND pins to filter out any noise or glitches that may trigger the POR or BOR features.
-
The ADG804YRMZ has a maximum junction temperature (TJ) of 150°C. To ensure reliable operation, use a thermal management strategy that keeps the device temperature below 125°C. This can be achieved by using a heat sink, thermal interface material, or a thermally conductive PCB substrate.
Trust Checks
System Verified
ADG804YRMZ Overview

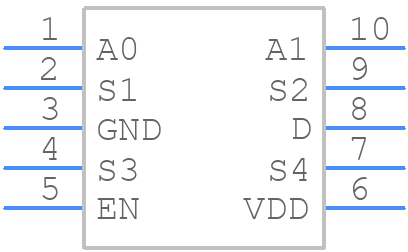

Use the download button to access the ADG804YRMZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADG80,
or try a keyword search, such as Multiplexers or Switches
