ADG836YCPZ-REEL7 - Analog Devices

Description: ANALOG DEVICES - ADG836YCPZ-REEL7 - Analogue Switch, Dual Channel, 2 Channels, SPDT, 0.65 ohm, 1.65V to 3.6V, LFCSP, 12 Pins

Download ADG836YCPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

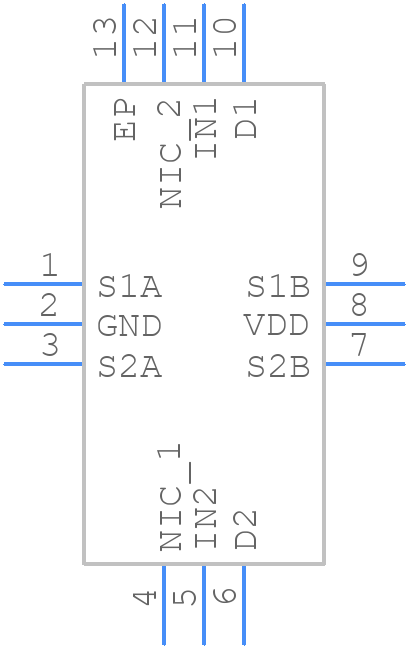

ADG836YCPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG836YCPZ-REEL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-12-4)
click to zoom
3D Models
ADG836YCPZ-REEL7 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-12-4)
click to zoom

ADG836YCPZ-REEL7 Details

  • Manufacturer Part Number:

    ADG836YCPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    CP-12-4

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    CAN ALSO OPERATE WITH 2.5V AND 3.3V SUPPLIES

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    S-XQCC-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Normal Position:

    NC

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    12

  • Off-state Isolation-Nom:

    67 dB

  • On-state Resistance Match-Nom:

    0.1 Ω

  • On-state Resistance-Max (Ron):

    1.4 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC12,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Signal Current-Max:

    0.3 A

  • Supply Current-Max (Isup):

    0.004 mA

  • Supply Voltage-Max (Vsup):

    1.95 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    9 ns

  • Switch-on Time-Max:

    37 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

ADG836YCPZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG836YCPZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow. Additionally, it's recommended to derate the device's power consumption and operating frequency to prevent overheating.
  • The ADG836YCPZ-REEL7 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe workstations, wrist straps, and packaging materials.
  • The ADG836YCPZ-REEL7 is not specifically designed for radiation-hardened applications. However, Analog Devices Inc. offers other products that are designed for radiation-hardened applications. It's recommended to consult with Analog Devices Inc. for specific guidance on using their products in radiation-hardened applications.
  • The recommended soldering conditions for the ADG836YCPZ-REEL7 include a peak temperature of 260°C, a dwell time of 10-30 seconds, and a soldering iron temperature of 350°C. For rework, it's recommended to use a low-temperature soldering iron and a solder wick to remove excess solder.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADG836YCPZ-REEL7 Overview

Use the download button to access the ADG836YCPZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADG83, or try a keyword search, such as Multiplexers or Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
