ADG839YKSZ-500RL7 - Analog Devices

Description: Single SPDT Switch NO-NC 0.35Ohm 1.65V

Download ADG839YKSZ-500RL7 Model

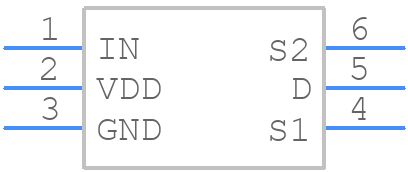

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADG839YKSZ-500RL7 - Analog Devices PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - ADG839YKSZ-500RL7
click to zoom
3D Models
ADG839YKSZ-500RL7 - Analog Devices  - 3D model - SOT23 (6-Pin) - ADG839YKSZ-500RL7
click to zoom

ADG839YKSZ-500RL7 Details

  • Manufacturer Part Number:

    ADG839YKSZ-500RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    SC-70, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    KS-6

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    R-PDSO-G6

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Off-state Isolation-Nom:

    57 dB

  • On-state Resistance Match-Nom:

    0.04 Ω

  • On-state Resistance-Max (Ron):

    0.6 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP6,.08

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Signal Current-Max:

    0.3 A

  • Supply Current-Max (Isup):

    0.004 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    9.8 ns

  • Switch-on Time-Max:

    21 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.25 mm

ADG839YKSZ-500RL7 Frequently Asked Questions (FAQs)

  • For optimal performance, it's recommended to follow Analog Devices' PCB layout guidelines, including using a solid ground plane, minimizing trace lengths, and using thermal vias to dissipate heat. A thermal pad on the bottom of the package can also be connected to a heat sink or a thermal plane to improve heat dissipation.
  • To ensure reliable operation across the entire operating temperature range, it's essential to follow proper PCB design and layout guidelines, use a reliable power supply, and ensure that the device is operated within its specified voltage and current ratings. Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, to maintain a stable junction temperature.
  • The recommended power-up sequence is to apply the analog supply voltage (VDD) before the digital supply voltage (VDDIO). During power-down, the sequence should be reversed. It's also essential to ensure that the input signals are stable and within the specified voltage range before applying power to the device.
  • To prevent ESD damage, handle the device by the package body only, and avoid touching the pins. Use an anti-static wrist strap or mat when handling the device. For latch-up prevention, ensure that the device is operated within its specified voltage and current ratings, and avoid applying voltage to the inputs before the supplies are powered up.
  • Use a high-impedance probe or a low-capacitance probe to measure the device's performance. Ensure that the measurement setup is properly calibrated, and use a low-noise power supply to minimize noise and interference. Additionally, use a high-speed oscilloscope with a bandwidth of at least 1 GHz to accurately capture the device's high-frequency behavior.
