ADG841YKSZ-500RL7 - Analog Devices

Description: Analog Devices ADG841YKSZ-500RL7, Analogue Switch Single SPST, 1.65 → 3.6 V, 6-Pin SC-70

Download ADG841YKSZ-500RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

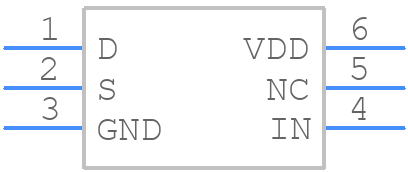

Symbol
ADG841YKSZ-500RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG841YKSZ-500RL7 - Analog Devices PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - KS-6 (SC70)_2
click to zoom
3D Models
ADG841YKSZ-500RL7 - Analog Devices - 3D model - SOT23 (6-Pin) - KS-6 (SC70)_2
click to zoom

ADG841YKSZ-500RL7 Details

  • Manufacturer Part Number:

    ADG841YKSZ-500RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    LEAD FREE, MO-203AB, SC-70, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    KS-6

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Off-state Isolation-Nom:

    54 dB

  • On-state Resistance-Max (Ron):

    0.35 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP6,.08

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Signal Current-Max:

    0.3 A

  • Supply Current-Max (Isup):

    0.004 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    8.2 ns

  • Switch-on Time-Max:

    16.5 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.25 mm

ADG841YKSZ-500RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG841YKSZ-500RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces to reduce parasitic inductance and capacitance. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow. Additionally, it's recommended to derate the device's power consumption and operating frequency to prevent overheating.
  • The ADG841YKSZ-500RL7 has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding oneself before handling the device, and using ESD-protective packaging.
  • The ADG841YKSZ-500RL7 is not specifically designed for radiation-hardened applications. If radiation hardness is required, it's recommended to consult with Analog Devices Inc. or a qualified radiation effects expert to determine the device's suitability for the specific application.
  • The recommended power-up sequence for the ADG841YKSZ-500RL7 is to power up the analog supply (VDDA) first, followed by the digital supply (VDD). During power-down, the sequence should be reversed. It's also recommended to ensure that the power supplies are ramped up and down slowly to prevent damage to the device.
