ADG849YKSZ-REEL - Analog Devices

Description: Analogue Switch ICs 1.8V to 5.5V 2:1 Mux/SPDT Switch I.C.

Download ADG849YKSZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

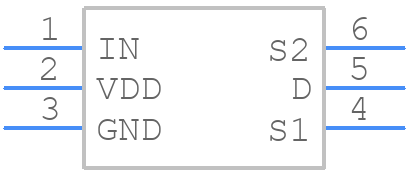

Symbol
ADG849YKSZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG849YKSZ-REEL - Analog Devices PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - KS-6_ SC70
click to zoom
3D Models
ADG849YKSZ-REEL - Analog Devices - 3D model - SOT23 (6-Pin) - KS-6_ SC70
click to zoom

ADG849YKSZ-REEL Details

  • Manufacturer Part Number:

    ADG849YKSZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    LEAD FREE, MO-203AB, SC-70, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    KS-6

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Off-state Isolation-Nom:

    64 dB

  • On-state Resistance Match-Nom:

    0.05 Ω

  • On-state Resistance-Max (Ron):

    0.6 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP6,.08

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Signal Current-Max:

    0.4 A

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    13 ns

  • Switch-on Time-Max:

    15 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.25 mm

ADG849YKSZ-REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG849YKSZ-REEL involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device. Additionally, it's recommended to derate the device's power consumption and operating frequency at high temperatures.
  • To prevent ESD damage, it's recommended to handle the ADG849YKSZ-REEL in an ESD-controlled environment, use ESD-protective packaging, and wear ESD-protective wrist straps or clothing. It's also essential to ground all equipment and tools before handling the device.
  • The ADG849YKSZ-REEL is not specifically designed or tested for radiation-hardened applications. If radiation hardness is required, it's recommended to consult with Analog Devices Inc. or a qualified radiation effects engineer to determine the device's suitability for the specific application.
  • For soldering and rework, it's recommended to follow the guidelines outlined in the JEDEC J-STD-020 standard. This includes using a soldering iron with a temperature-controlled tip, using a solder with a melting point below 220°C, and avoiding excessive heat or mechanical stress on the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADG849YKSZ-REEL Overview

Use the download button to access the ADG849YKSZ-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADG84, or try a keyword search, such as Multiplexers or Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
