ADG849YKSZ-REEL7 - Analog Devices

Description: Analog Switch ICs 1.8V to 5.5V 2:1 Mux/SPDT Switch I.C.

Download ADG849YKSZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

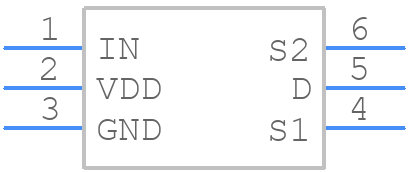

ADG849YKSZ-REEL7 - Analog Devices - PCB symbol
