ADG884BCPZ-REEL - Analog Devices

Description: Analog Switch Dual SPDT 10-Pin LFCSP EP T/R

Download ADG884BCPZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

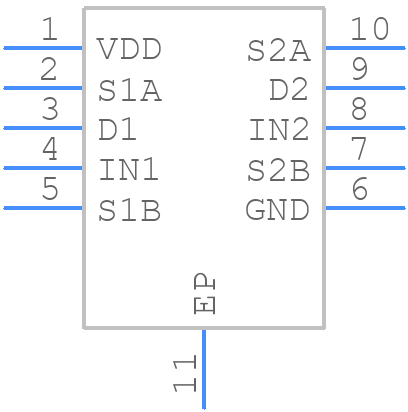

Symbol
ADG884BCPZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG884BCPZ-REEL - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - ADG884BCPZ-REEL
click to zoom
3D Models
ADG884BCPZ-REEL - Analog Devices - 3D model - Small Outline No-lead - ADG884BCPZ-REEL
click to zoom

ADG884BCPZ-REEL Details

  • Manufacturer Part Number:

    ADG884BCPZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    3 X 3 MM, LEAD FREE, LFCSP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    CP-10-9

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    AUDIO/VIDEO SWITCH

  • JESD-30 Code:

    S-XDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Normal Position:

    NC

  • Number of Channels:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Off-state Isolation-Nom:

    60 dB

  • On-state Resistance Match-Nom:

    0.02 Ω

  • On-state Resistance-Max (Ron):

    0.5 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Signal Current-Max:

    0.4 A

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    19 ns

  • Switch-on Time-Max:

    56 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

ADG884BCPZ-REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG884BCPZ-REEL involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device. Additionally, the device should be operated within its specified temperature range.
  • The ADG884BCPZ-REEL has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding oneself before handling the device, and using ESD-protective packaging.
  • To troubleshoot issues with the ADG884BCPZ-REEL, start by reviewing the device's datasheet and application notes. Check the power supply voltage, input signals, and output loads to ensure they are within the specified ranges. Use oscilloscopes or logic analyzers to monitor the device's behavior and identify any anomalies.
  • When using the ADG884BCPZ-REEL in a high-reliability or safety-critical application, it's essential to follow a rigorous design and testing process. This includes performing thorough risk assessments, implementing redundant or fail-safe designs, and conducting extensive testing and validation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADG884BCPZ-REEL Overview

Use the download button to access the ADG884BCPZ-REEL schematic symbol, PCB footprint, and 3D model.
