ADG888YRUZ-REEL - Analog Devices

Description: Analog Switch Dual DPDT Automotive 16-Pin TSSOP T/R

Download ADG888YRUZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

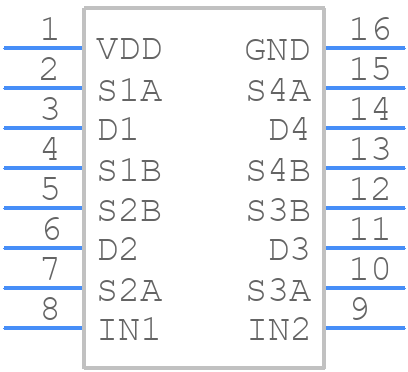

Symbol
ADG888YRUZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG888YRUZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
ADG888YRUZ-REEL - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

ADG888YRUZ-REEL Details

  • Manufacturer Part Number:

    ADG888YRUZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    DPDT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    67 dB

  • On-state Resistance Match-Nom:

    0.045 Ω

  • On-state Resistance-Max (Ron):

    0.7 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Signal Current-Max:

    0.4 A

  • Supply Current-Max (Isup):

    0.004 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    22 ns

  • Switch-on Time-Max:

    50 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADG888YRUZ-REEL Frequently Asked Questions (FAQs)

  • For optimal performance, it's recommended to follow Analog Devices' PCB layout guidelines, including using a solid ground plane, minimizing trace lengths, and using thermal vias to dissipate heat. A thermal pad on the bottom of the package can also be connected to a heat sink or a thermal plane to improve heat dissipation.
  • To ensure signal integrity and minimize EMI, use differential signaling, keep signal traces short and away from noise sources, and use shielding or guard rings around sensitive signals. Additionally, follow proper PCB stack-up and layer management guidelines to reduce EMI radiation.
  • For optimal performance, use a combination of ceramic and electrolytic capacitors for power supply decoupling, with a minimum of 10uF capacitance per power pin. Additionally, consider using ferrite beads or inductors to filter out high-frequency noise on the power supply lines.
  • The ADG888YRUZ-REEL has a built-in power-on reset circuit. Ensure that the power supply ramps up slowly (typically <10ms) to allow the internal reset circuit to properly initialize the device. Also, follow the recommended startup sequence outlined in the datasheet to ensure proper device operation.
  • The ADG888YRUZ-REEL has a maximum junction temperature of 150°C. Derate the device's power consumption and operating frequency according to the thermal derating curves provided in the datasheet to ensure reliable operation over the desired temperature range.
