ADG888YRUZ - Analog Devices

Description: Analog Devices ADG888YRUZ, Analogue Switch Dual DPDT, 4.2 → 5.5 V, 16-Pin TSSOP

Download ADG888YRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

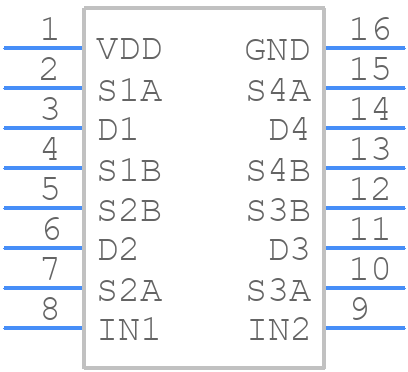

Symbol
ADG888YRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG888YRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - tssop 16
click to zoom
3D Models
ADG888YRUZ - Analog Devices - 3D model - Small Outline Packages - tssop 16
click to zoom

ADG888YRUZ Details

  • Manufacturer Part Number:

    ADG888YRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    DPDT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    67 dB

  • On-state Resistance Match-Nom:

    0.045 Ω

  • On-state Resistance-Max (Ron):

    0.7 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Signal Current-Max:

    0.4 A

  • Supply Current-Max (Isup):

    0.004 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    22 ns

  • Switch-on Time-Max:

    50 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADG888YRUZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG888YRUZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connected to the analog inputs. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To ensure proper powering and decoupling of the ADG888YRUZ, use a high-quality, low-ESR capacitor (e.g., 10uF) between the VDD and GND pins, and a smaller capacitor (e.g., 100nF) between the VDD and AVDD pins. Also, use a separate power plane for analog and digital supplies, and ensure the power supply is clean and regulated.
  • The ADG888YRUZ can handle analog input signals up to 100 kHz, but the actual frequency limit depends on the specific application and the quality of the input signal. For higher frequency applications, consider using an anti-aliasing filter to prevent aliasing and ensure accurate conversion.
  • To optimize the ADG888YRUZ for low-power operation, use the lowest possible clock frequency, disable the internal reference voltage, and use the power-down mode when not converting. Additionally, consider using a lower supply voltage (e.g., 2.5V) and optimizing the analog input signal to minimize the current consumption.
  • The recommended calibration procedure for the ADG888YRUZ involves applying a known input voltage, taking multiple conversions, and calculating the gain and offset errors. Then, use these errors to correct the subsequent conversions. It's also recommended to perform calibration at multiple temperatures and input ranges to ensure optimal performance.
