ADG902BRMZ - Analog Devices

Description: ADG902BRMZ, RF Switch 2500MHz Single SPST 31dB Isolation CMOS/LVTTL 1.8, 2.5V 8-Pin MSOP

Download ADG902BRMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

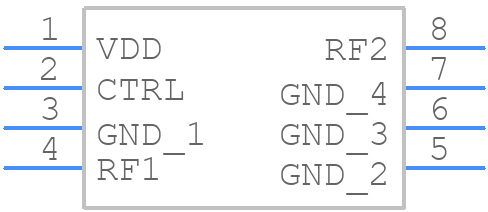

ADG902BRMZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG902BRMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSOP 16
click to zoom
3D Models
ADG902BRMZ - Analog Devices - 3D model - Small Outline Packages - MSOP 16
click to zoom

ADG902BRMZ Details

  • Manufacturer Part Number:

    ADG902BRMZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • 1dB Compression Point:

    17 dBm

  • Additional Feature:

    CMOS COMPATIBLE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    17.99 dBm

  • Insertion Loss-Max:

    1.25 dB

  • Isolation-Min:

    31 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • On Time-Nom:

    0.0036 µs

  • Operating Frequency-Max:

    2500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Port Termination:

    REFLECTIVE

  • Power Supplies:

    1.8/2.5 V

  • RF/Microwave Device Type:

    DIVERSITY SWITCH

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • VSWR-Max:

    1.07
