ADG904BRUZ-R - Analog Devices

Description: ADG904BRUZ-R, Multiplexer Single 4:1, 20-Pin, TSSOP

Download ADG904BRUZ-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

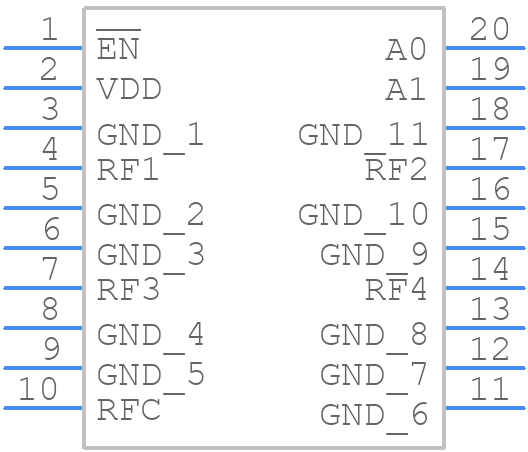

Symbol
ADG904BRUZ-R - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG904BRUZ-R - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 20-Lead TSSOP
click to zoom
3D Models
ADG904BRUZ-R - Analog Devices - 3D model - Small Outline Packages - 20-Lead TSSOP
click to zoom

ADG904BRUZ-R Details

  • Manufacturer Part Number:

    ADG904BRUZ-R

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AC, TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RU-20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Off-state Isolation-Nom:

    37 dB

  • On-state Resistance-Max (Ron):

    37 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Signal Current-Max:

    0.03 A

  • Supply Voltage-Max (Vsup):

    2.75 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    16 ns

  • Switch-on Time-Max:

    10 ns

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

ADG904BRUZ-R Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG904BRUZ-R involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device. Additionally, the device should be operated within its specified temperature range.
  • To prevent ESD damage, it's recommended to handle the ADG904BRUZ-R in an ESD-controlled environment, use ESD-protective packaging, and wear an ESD-protective wrist strap or use an ESD-protective mat. Additionally, the device should be stored in an anti-static bag or tube.
  • The ADG904BRUZ-R is not a radiation-hardened device, and its performance may degrade or become unstable in radiation-rich environments. If radiation hardness is required, a different device should be selected.
  • To troubleshoot issues with the ADG904BRUZ-R, start by verifying the power supply voltage, checking for proper PCB layout and routing, and ensuring that the device is operated within its specified temperature range. Use an oscilloscope to measure the output voltage and check for oscillations. Consult the datasheet and application notes for guidance on troubleshooting common issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADG904BRUZ-R Overview

Use the download button to access the ADG904BRUZ-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADG90, or try a keyword search, such as Multiplexers or Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
