ADG918BCPZ-500RL7 - Analog Devices

Description: RF Switch ICs 1GHz 2:1 MUX (50 Ohm Termination) I.C.

Download ADG918BCPZ-500RL7 Model

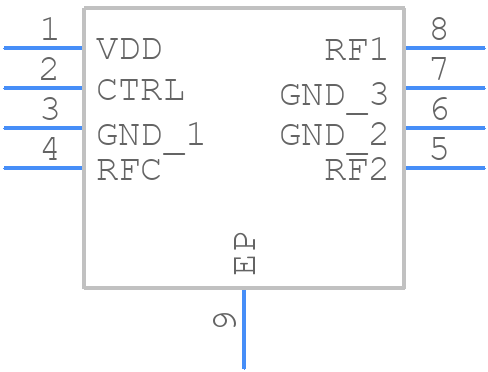

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADG918BCPZ-500RL7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - (CP-8-13)
click to zoom
3D Models
ADG918BCPZ-500RL7 - Analog Devices  - 3D model - Small Outline No-lead - (CP-8-13)
click to zoom

ADG918BCPZ-500RL7 Details

  • Manufacturer Part Number:

    ADG918BCPZ-500RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, CP-8-2, LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-13

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • 1dB Compression Point:

    17 dBm

  • Additional Feature:

    CMOS COMPATIBLE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    17.99 dBm

  • Insertion Loss-Max:

    1.25 dB

  • Isolation-Min:

    36 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • On Time-Nom:

    0.0066 µs

  • Operating Frequency-Max:

    4000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC8,.1,20

  • Port Termination:

    ABSORP/REFLECTIVE

  • Power Supplies:

    1.65/2.75 V

  • RF/Microwave Device Type:

    DIVERSITY SWITCH

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • VSWR-Max:

    1.09

ADG918BCPZ-500RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG918BCPZ-500RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device. Additionally, it's recommended to derate the device's power consumption and operating frequency at high temperatures.
  • To minimize EMI and RFI, it's recommended to use a shielded enclosure, keep the device away from high-frequency sources, and use EMI filters or ferrite beads on the input and output lines. Additionally, it's essential to follow good PCB layout practices, such as keeping the signal traces short and using a solid ground plane.
  • To troubleshoot common issues with the ADG918BCPZ-500RL7, start by checking the power supply voltage and ensuring it's within the recommended range. Next, verify that the input and output signals are within the specified limits. If oscillations or instability persist, check the PCB layout for any potential issues, such as signal trace lengths or impedance mismatches. Finally, consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • When using the ADG918BCPZ-500RL7 in a high-reliability or safety-critical application, it's essential to follow a rigorous design and testing process, including fault tree analysis, failure modes and effects analysis (FMEA), and environmental stress screening (ESS). Additionally, it's recommended to use redundant or duplicate systems, and to implement multiple levels of error detection and correction.
