ADG918BRMZ-500RL7 - Analog Devices

Description: Analog Devices ADG918BRMZ-500RL7, Analogue SPDT Switch, 8-Pin MSOP

Download ADG918BRMZ-500RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

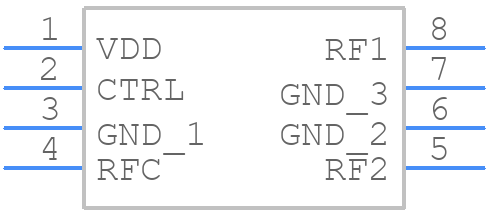

ADG918BRMZ-500RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG918BRMZ-500RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RM-8)
click to zoom
3D Models
ADG918BRMZ-500RL7 - Analog Devices - 3D model - Small Outline Packages - (RM-8)
click to zoom

ADG918BRMZ-500RL7 Details

  • Manufacturer Part Number:

    ADG918BRMZ-500RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, RM-8, MO-187AA, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • 1dB Compression Point:

    17 dBm

  • Additional Feature:

    CMOS COMPATIBLE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    17.99 dBm

  • Insertion Loss-Max:

    1.25 dB

  • Isolation-Min:

    34 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • On Time-Nom:

    0.0066 µs

  • Operating Frequency-Max:

    4000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Port Termination:

    ABSORP/REFLECTIVE

  • Power Supplies:

    1.65/2.75 V

  • RF/Microwave Device Type:

    DIVERSITY SWITCH

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • VSWR-Max:

    1.09

ADG918BRMZ-500RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG918BRMZ-500RL7 should consider the following: keep the input and output traces as short as possible, use a solid ground plane, and avoid running digital lines near the analog signals. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane to minimize noise and interference.
  • To ensure the ADG918BRMZ-500RL7 operates within the specified temperature range, it's essential to provide adequate heat sinking and thermal management. This can be achieved by using a heat sink, thermal interface material, and ensuring good airflow around the device. It's also crucial to follow the recommended thermal design guidelines provided by Analog Devices Inc.
  • Exceeding the maximum power rating of the ADG918BRMZ-500RL7 can lead to reduced reliability, increased thermal resistance, and potentially catastrophic failure. It's essential to ensure that the device operates within the specified power rating to maintain its performance, reliability, and lifespan.
  • To troubleshoot common issues with the ADG918BRMZ-500RL7, start by checking the power supply voltage, input/output connections, and PCB layout. Verify that the device is operated within the specified temperature range and that the input signals are within the recommended range. If issues persist, consult the datasheet, application notes, and Analog Devices Inc.'s technical support resources for further guidance.
  • To minimize EMI and RFI issues with the ADG918BRMZ-500RL7, follow proper PCB layout and design guidelines, use shielding and filtering techniques, and ensure that the device is operated within the specified frequency range. Additionally, consider using EMI-absorbing materials, and follow the recommended layout and grounding techniques to minimize radiation and susceptibility.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADG918BRMZ-500RL7 Overview

Use the download button to access the ADG918BRMZ-500RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADG91, or try a keyword search, such as RF/Microwave Switches
