ADGS1408BCPZ-RL7 - Analog Devices

Description: SPI Interface, 4 Ω RON, ±15 V/+12 V/±5 V, 1.8 V Logic Control, 8:1 Muxes

Download ADGS1408BCPZ-RL7 Model

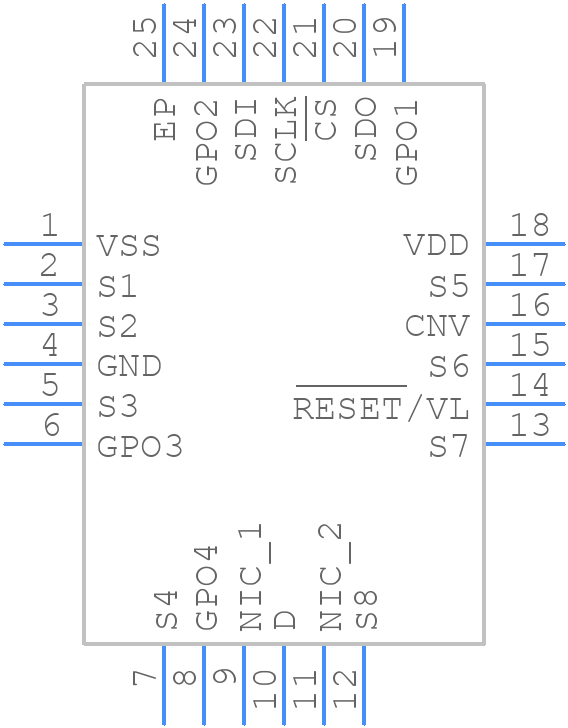

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADGS1408BCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - ADGS1408BCPZ-RL7aa
click to zoom
3D Models
ADGS1408BCPZ-RL7 - Analog Devices  - 3D model - Quad Flat No-Lead - ADGS1408BCPZ-RL7aa
click to zoom

ADGS1408BCPZ-RL7 Details

  • Manufacturer Part Number:

    ADGS1408BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-17

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-06-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    ALSO OPERATE WITH +/-15 V AND 12 V SUPPLY RANGES

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • Input Voltage-Max:

    5 V

  • Input Voltage-Min:

    -5 V

  • JESD-30 Code:

    S-XQCC-N24

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -16.5 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Normal Position:

    NO

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Off-state Isolation-Nom:

    64 dB

  • On-state Resistance Match-Nom:

    0.3 Ω

  • On-state Resistance-Max (Ron):

    12 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Signal Current-Max:

    48.9 A

  • Supply Current-Max (Isup):

    0.02 mA

  • Supply Voltage-Max (Vsup):

    16.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    400 ns

  • Switch-on Time-Max:

    570 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

ADGS1408BCPZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADGS1408BCPZ-RL7 involves keeping the signal paths short, using a solid ground plane, and minimizing the distance between the device and the load. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane. Additionally, the device's exposed pad should be connected to a solid ground plane to improve thermal performance.
  • To ensure the reliability of the ADGS1408BCPZ-RL7 in high-temperature applications, it's essential to follow proper thermal management practices. This includes providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device. Additionally, the device's operating temperature should be kept within the recommended range, and the power dissipation should be limited to avoid overheating.
  • The recommended power-up sequence for the ADGS1408BCPZ-RL7 is to first apply the VDD supply, followed by the VSS supply. This ensures that the internal circuitry is properly biased and that the device operates correctly. It's also recommended to use a slow power-up ramp (typically 1 ms to 10 ms) to prevent damage to the device.
  • To troubleshoot issues with the ADGS1408BCPZ-RL7, start by verifying that the power supplies are within the recommended range and that the device is properly connected to the load. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to verify the signal integrity and check for any signs of signal distortion or attenuation. If the issue persists, consult the datasheet and application notes for further guidance.
  • The ADGS1408BCPZ-RL7 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures when handling the device. This includes using an ESD wrist strap or mat, storing the device in an ESD-safe container, and avoiding direct contact with the device's pins. Additionally, the device's pins should be connected to a 1 kΩ to 10 kΩ resistor to prevent ESD damage.
