ADGS1412BCPZ - Analog Devices

Description: RF Switch Quad SPST LFCSP-24

Download ADGS1412BCPZ Model
Schematic

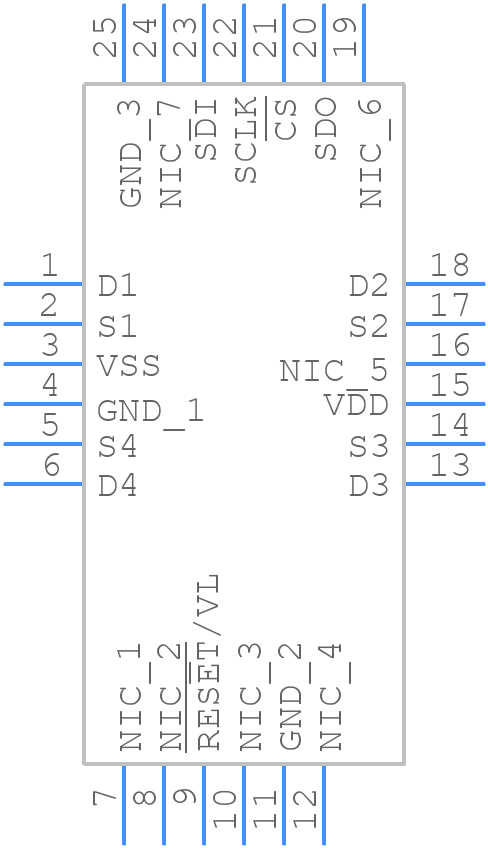

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADGS1412BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24Lead Lead Frame Chip Scale Package [LFCSP_VQ] 4 mm × 4 mm Body, Very Thin Quad (CP-24-2)
click to zoom
3D Models
ADGS1412BCPZ - Analog Devices  - 3D model - Quad Flat No-Lead - 24Lead Lead Frame Chip Scale Package [LFCSP_VQ] 4 mm × 4 mm Body, Very Thin Quad (CP-24-2)
click to zoom

ADGS1412BCPZ Details

  • Manufacturer Part Number:

    ADGS1412BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-17

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-10-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -16.5 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    24

  • Off-state Isolation-Nom:

    76 dB

  • On-state Resistance Match-Nom:

    0.13 Ω

  • On-state Resistance-Max (Ron):

    4 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Signal Current-Max:

    0.297 A

  • Supply Current-Max (Isup):

    0.38 mA

  • Supply Voltage-Max (Vsup):

    16.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    225 ns

  • Switch-on Time-Max:

    485 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADGS1412BCPZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADGS1412BCPZ involves keeping the signal traces short and direct, using a solid ground plane, and avoiding vias and right-angle bends. It's also recommended to use a 4-layer PCB with a dedicated ground plane and to keep the analog and digital signals separate.
  • To ensure proper power and decoupling, use a low-ESR capacitor (e.g., 0.1 μF) between VDD and GND, and a larger capacitor (e.g., 10 μF) between VDD and GND for bulk decoupling. Also, use a low-dropout regulator (LDO) or a switching regulator with a low noise output to power the ADGS1412BCPZ.
  • The ADGS1412BCPZ can achieve data rates up to 1 Gbps, but the actual data rate depends on the specific application, PCB layout, and signal quality. It's recommended to consult the datasheet and application notes for more information on achieving high-speed data transmission.
  • To handle thermal management, ensure good airflow around the device, use a heat sink or thermal pad if necessary, and avoid blocking the airflow around the device. Also, follow the recommended operating temperature range of -40°C to 85°C to prevent overheating.
  • The ADGS1412BCPZ has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. For latch-up prevention, ensure that the device is powered up and down slowly, and avoid applying voltage to the inputs before the power supply is stable.
