ADGS1612BCPZ-RL7 - Analog Devices

Description: SPI Interface, 1 Ω RON, ±5 V, 12 V, 5 V, 3.3 V, Mux Configurable, Quad SPST Switch

Download ADGS1612BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

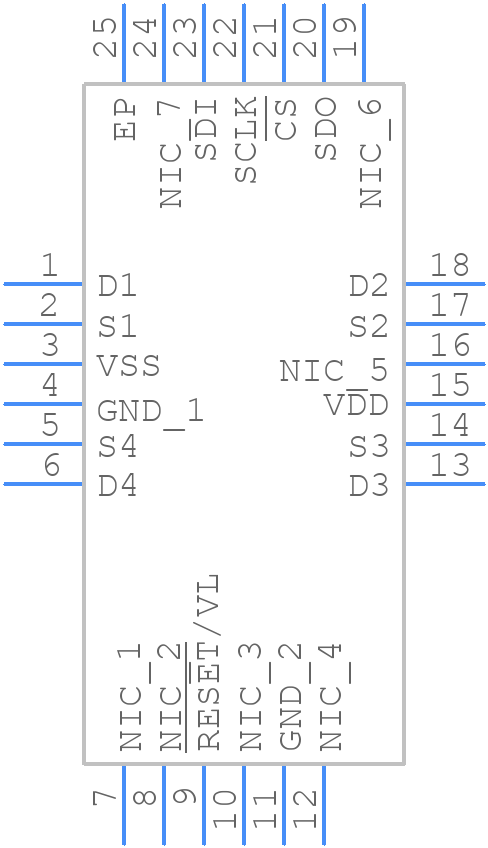

ADGS1612BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADGS1612BCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-24-17
click to zoom
3D Models
ADGS1612BCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-24-17
click to zoom

ADGS1612BCPZ-RL7 Details

  • Manufacturer Part Number:

    ADGS1612BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-17

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    S-XQCC-N24

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -5.5 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    24

  • Off-state Isolation-Nom:

    65 dB

  • On-state Resistance Match-Nom:

    0.04 Ω

  • On-state Resistance-Max (Ron):

    1.2 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Signal Current-Max:

    0.33 A

  • Supply Current-Max (Isup):

    0.48 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    360 ns

  • Switch-on Time-Max:

    485 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

ADGS1612BCPZ-RL7 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ADGS1612BCPZ-RL7 can be found in the ADGS1612 evaluation board documentation, which provides a reference design for optimal performance. Additionally, Analog Devices provides a PCB layout guide that can be used as a starting point for custom designs.
  • To ensure reliable operation of the ADGS1612BCPZ-RL7 in high-temperature environments, it is essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow. Additionally, the device should be operated within its specified temperature range, and the junction temperature should be monitored to prevent overheating.
  • The recommended power-up sequence for the ADGS1612BCPZ-RL7 is to apply the VDD supply first, followed by the VSS supply. This ensures that the internal circuitry is properly biased and prevents any potential latch-up or damage to the device.
  • To troubleshoot issues with the ADGS1612BCPZ-RL7, it is recommended to follow a systematic approach, starting with a review of the device's datasheet and application notes. Check the power supply voltages, signal integrity, and PCB layout for any potential issues. Use oscilloscopes or logic analyzers to monitor the device's inputs and outputs, and consult with Analog Devices' technical support team if necessary.
  • Yes, the ADGS1612BCPZ-RL7 is suitable for use in high-reliability or safety-critical systems, such as automotive, industrial, or medical applications. However, it is essential to follow proper design and validation procedures, including fault tree analysis, failure mode effects analysis (FMEA), and compliance with relevant industry standards and regulations.
